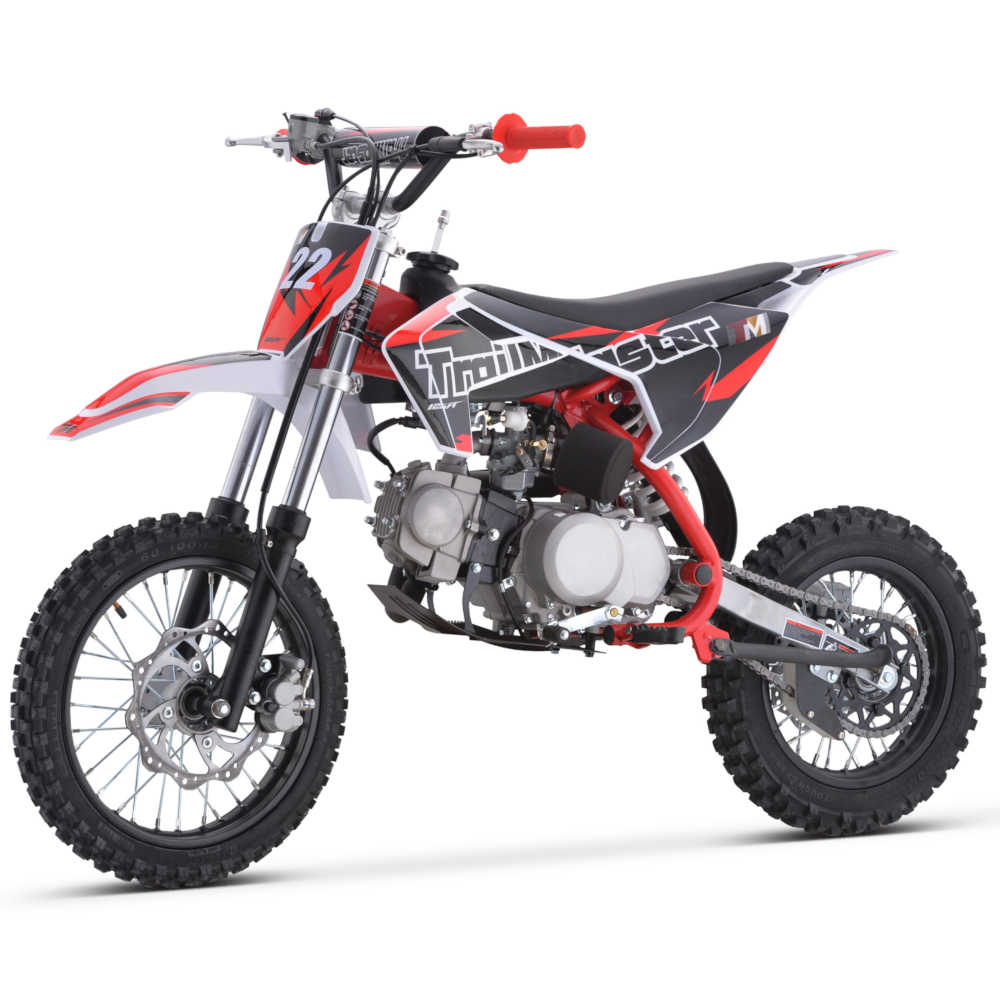

TrailMaster TM22 Mid-size Dirt Bike - Red

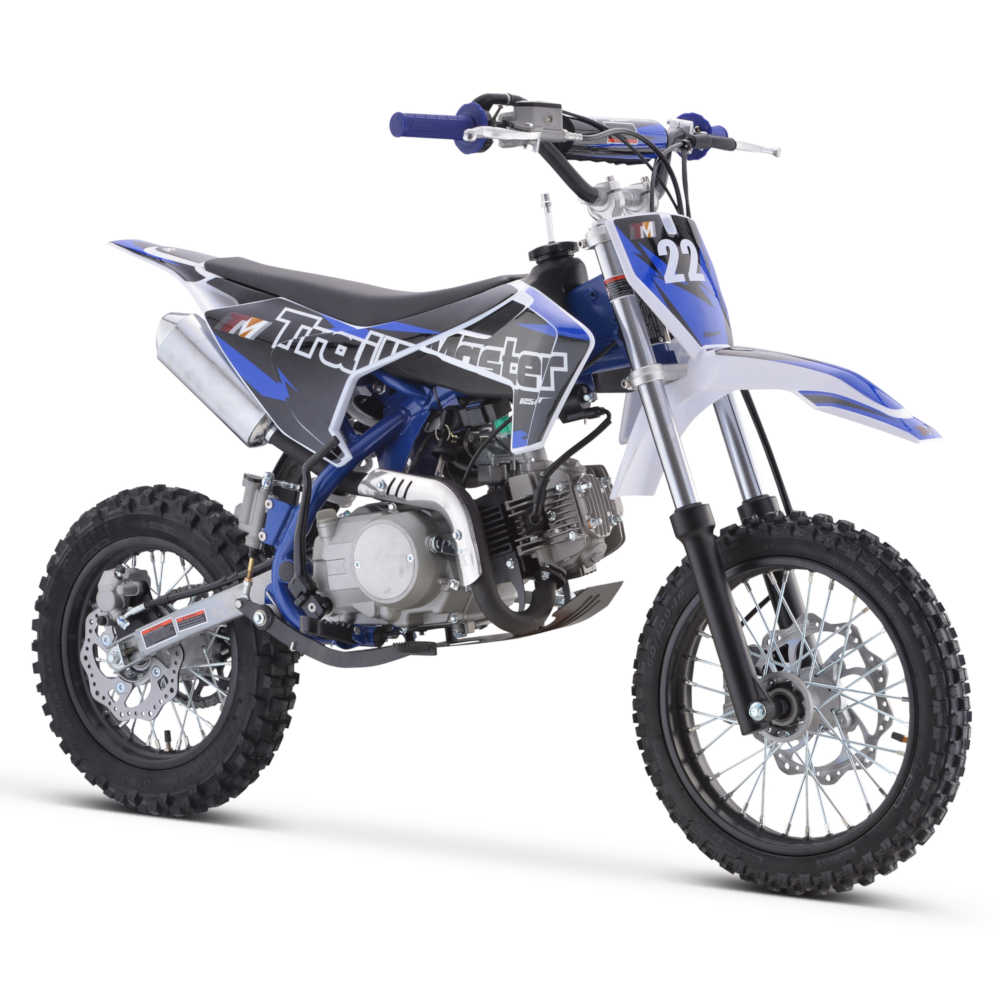

TrailMaster TM22 Mid-size Dirt Bike - Blue

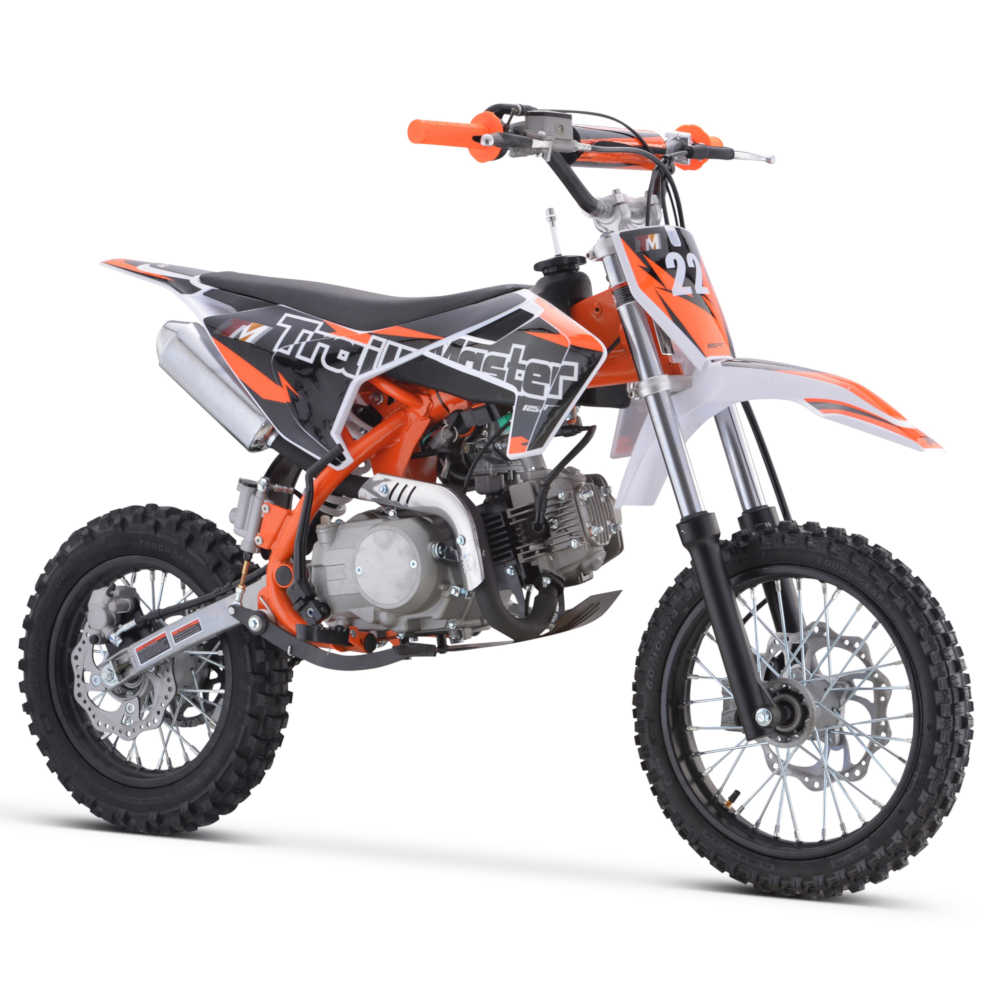

TrailMaster TM22 Mid-size Dirt Bike - Orange

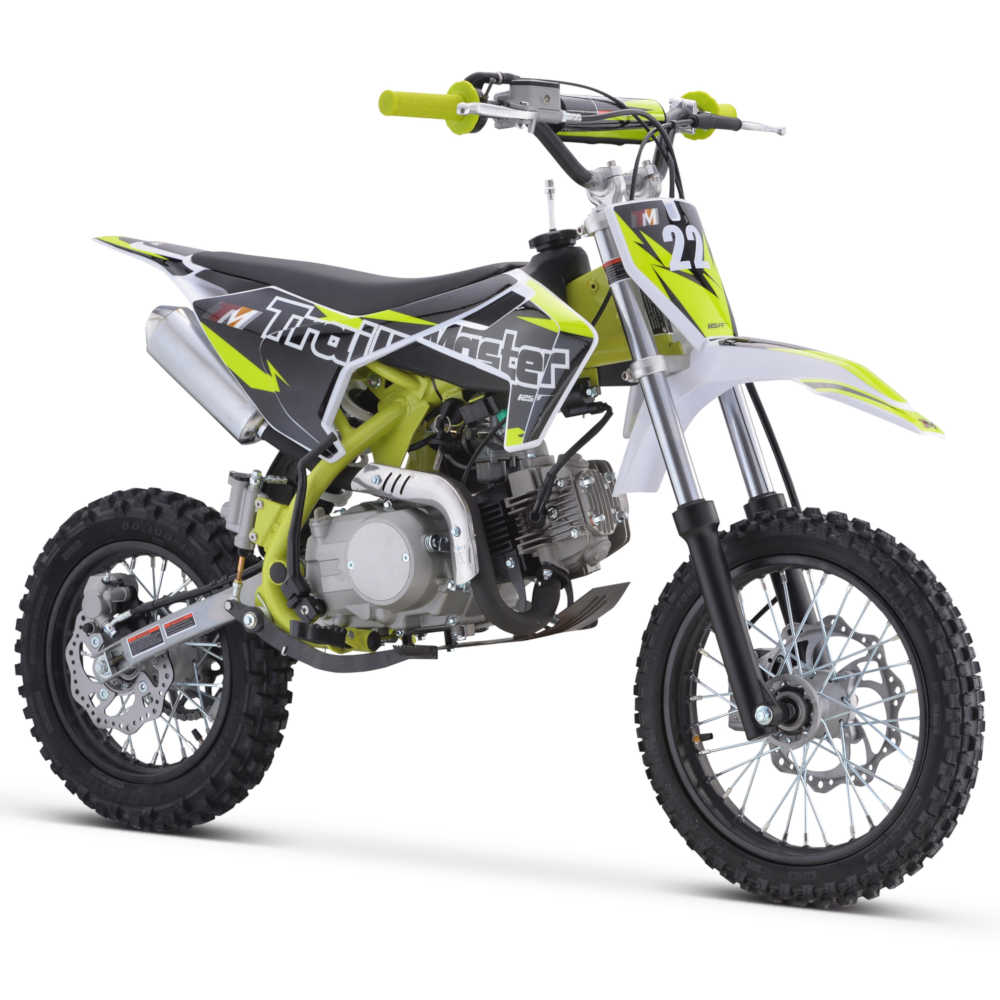

TrailMaster TM22 Mid-size Dirt Bike - Green

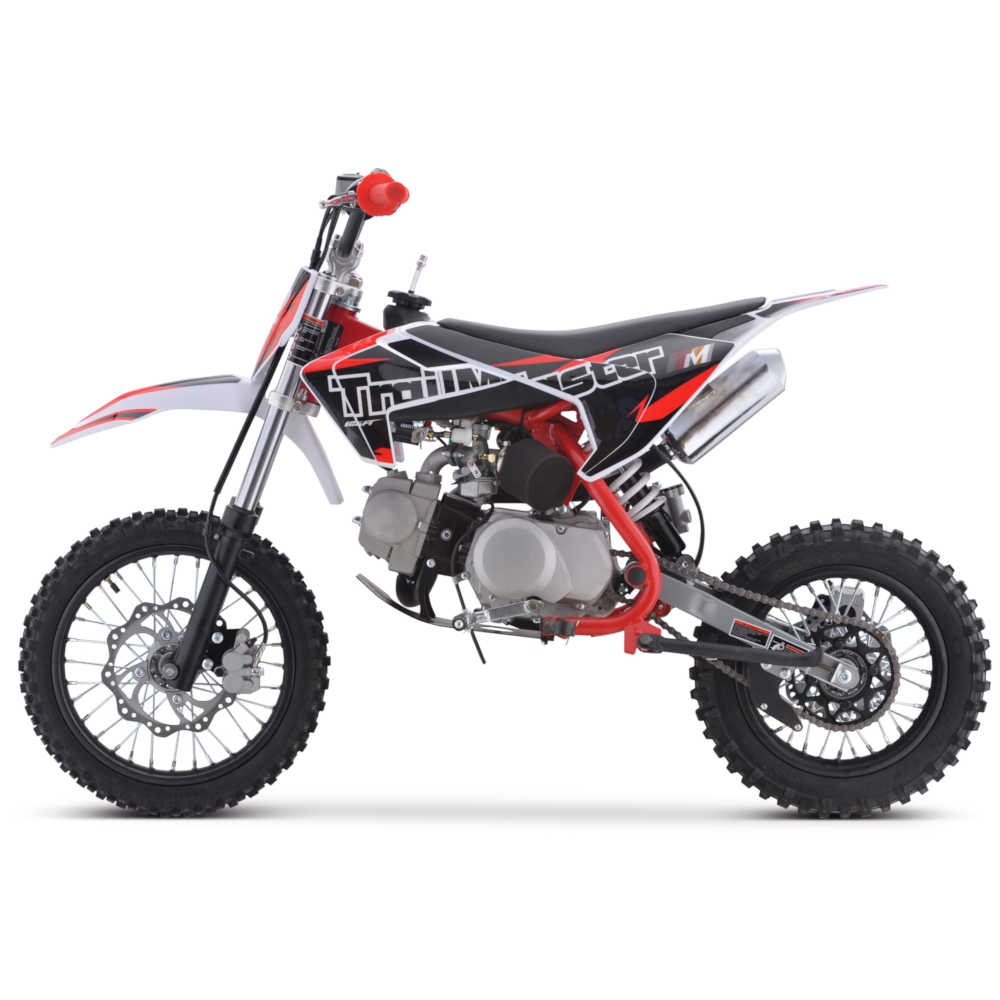

TrailMaster TM22 Mid-size Dirt Bike - red left side view

TrailMaster TM22 Mid-size Dirt Bike

$1,021.76

Color

Clear

Description

The TM22 Dirt Bike from TrailMaster is a powerful mid-size motorcycle that is a great choice for trail riding or as a pit bike! Featuring a single-cylinder 4-stroke 124cc engine and a manual 4-speed transmission, this bike is a great start to more technical riding.

A rugged, high-strength steel down tube frame provides the TM22 with amazing durability. Smooth-riding telescopic forks and a monoshock rear swing-arm allow for precise handling even on rough off-road trails. The TM22 rides on a 14 inch front wheel and 12 inch rear and boasts over 10 inches of ground clearance!

The low-weight frame and relatively low 29 inch seat on the TM22 set it up to be a fantastic dirt bike for smaller youth who are ready to learn shifting with a manual clutch. Hydraulic disc brakes on the front and rear of the motorcycle provide excellent stopping power and improved handling over different grades, in tight turns, and during trail riding. Comes with a reliable kick starter. Available in a variety of colors!

Specifications:

Model	TrailMaster TM22
Engine	Single Cylinder, 4-stroke, Air-cooled
Displacement	124cc
Max Power	6.2(1+-10%) / 7000(1+-5%) kw/rpm
Max Torque	9.0(1+-10%) / 5000(1+-5%) N.m/rpm

Transmission	Manual
Gearing	N-1-2-3-4
Final Drive	Chain
Starting system	Kick
Ignition	CDI
Fuel capacity	.92 gal.
Brakes (Front/Rear)	Hydraulic Disc / Hydraulic Disc
Wheels (Front/Rear)	1.6x14 / 1.85x12
Tires (Front/Rear)	60/100-14 / 80/100-12
Suspension (Front/Rear)	Telescopic Forks / Swing-Arm
Ground Clearance	10.6 inches
Max load	TBD
Wheelbase	41.5 inches
Seat Height	29.1 inches
Net Weight	134.5 lbs.
Gross Weight	161 lbs.
Dimensions (LxWxH)	60.2x28.7x39.8 inches
Shipping Dimensions (LxWxH)	54.5x14.8x30 inches

Additional information

Weight	161 lbs
Dimensions	54.5 × 14.8 × 30 in
Color	Blue, Green, Orange, Red
Bike Type	Dirt / Pit Bikes
Engine Type	4-Stroke
Transmission	Manual
Recommended Age	Youth 8-15
