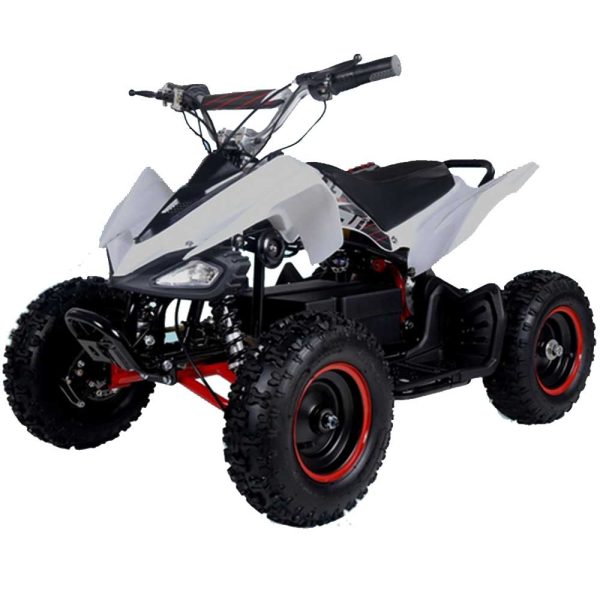

Tao E1 Kids Electric ATV

This product has been discontinued.

SKU: TT-E1-500 Category: Electric ATVs Tags: 500W, TaoTao Brand: Tao Tao

Description

Don’t buy another plastic electric ride-on toy from the big box stores. The Tao electric kids ATV is built just like a real ATV with pneumatic tires, full suspension and disc brake, but it’s sized just right for little riders! No more hard plastic wheels that slip and wear out, the E1 comes standard with real off-road knobbies on 6 inch steel rims. No more noisy, whining motors like other brands come with. The E1 kids four-wheeler comes with a 36V 500W brushless motor for smooth, quiet operation and reliable power. And parents stay in complete control with the quads adjustable speed settings. High-tensile steel frame, disc brake and LED lights round out the great features on this excellent little kids ATV! Comes in your choice of several cool color combos!

Specifications:

Model	TaoTao E1 Electric ATV
Motor	500 Watt, Brushless Electric Motor
Rated RPM	2800r/min
Rated Torque	8 N.m
Final Drive	Chain
Transmission	Switched 3-Speed w/Reverse
Max Speed	Low 8 mph, Medium 12 mph, High 14 mph (approximate, depending on rider weight and terrain)
Battery	36V 12Ah, Sealed Lead Acid Battery
Charging Time	8 Hours (approx.)
Brakes (front/rear)	NA / Hydraulic Disc
Tires (front/rear)	4.10 - 6 / 13 x 5.0 - 6
Features	High-Tensile Steel Frame, LED Lights, Pneumatic Tires
Ground Clearance	3.1 inches
Seat Height	20 inches
Wheelbase	27.50 inches
Load Capacity	110 lbs.
Net Weight	112 lbs.
Gross Weight	134 lbs.
Dimensions (LxWxH)	41x26x27 inches
Shipping Dimensions (LxWxH)	39x23x17 inches

Additional information

Weight	134 lbs
Dimensions	39 × 23 × 17 in
Color	Black/Orange, Black/Red, White/Green, White/Red
