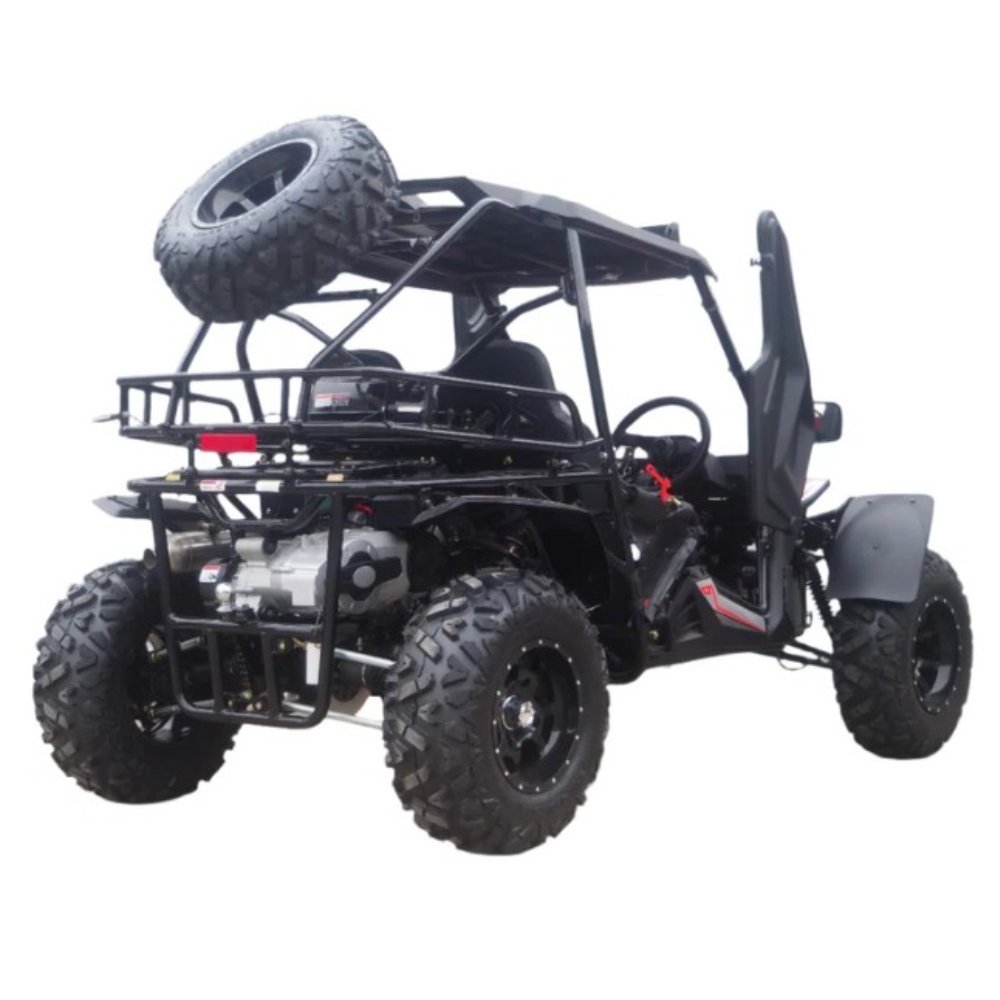

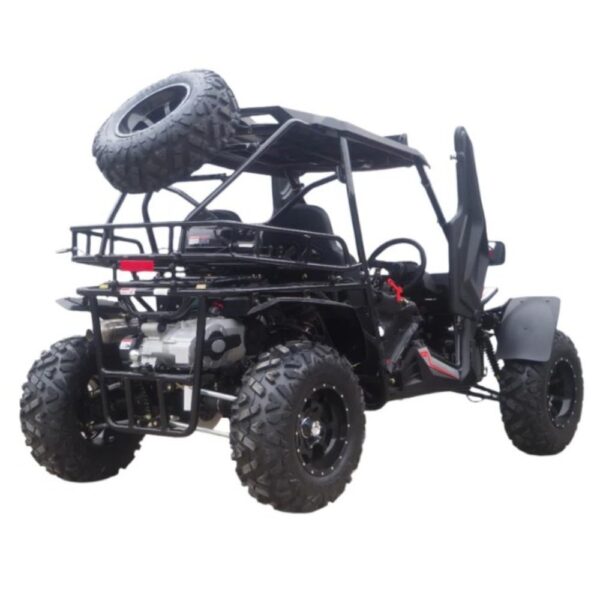

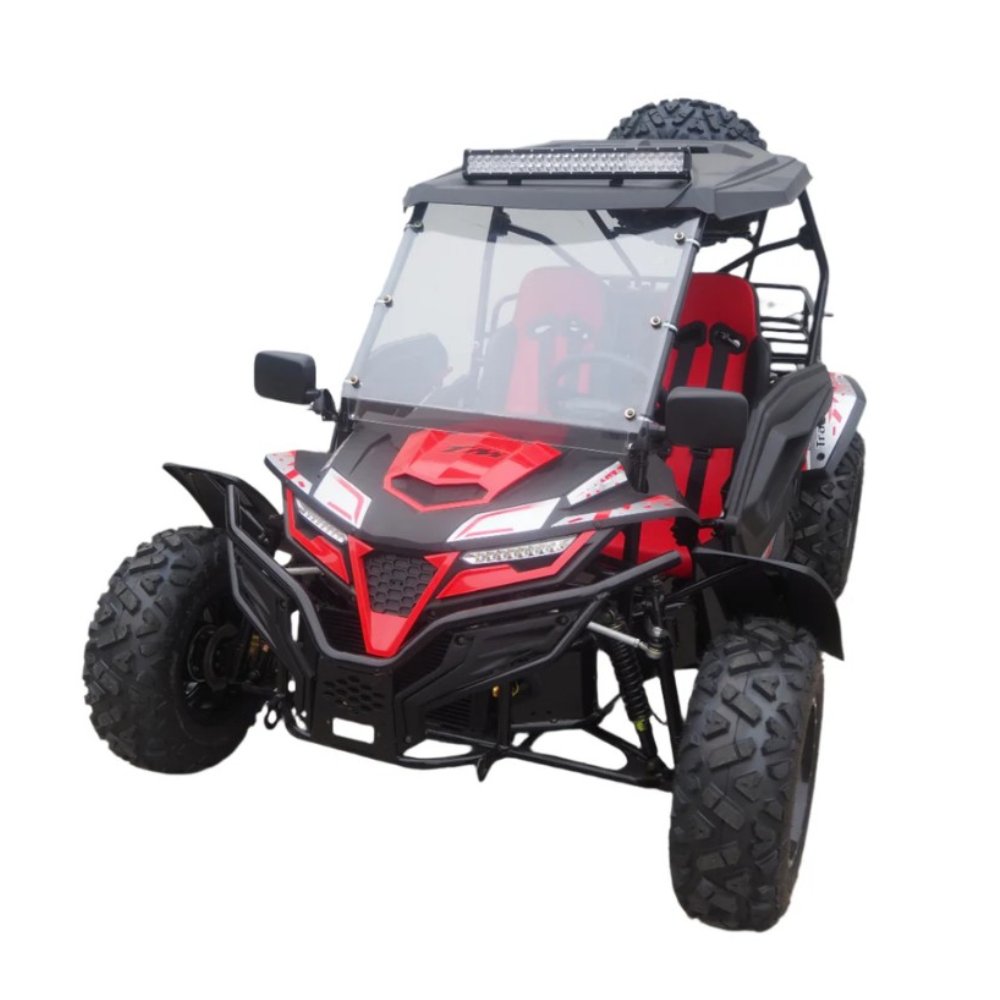

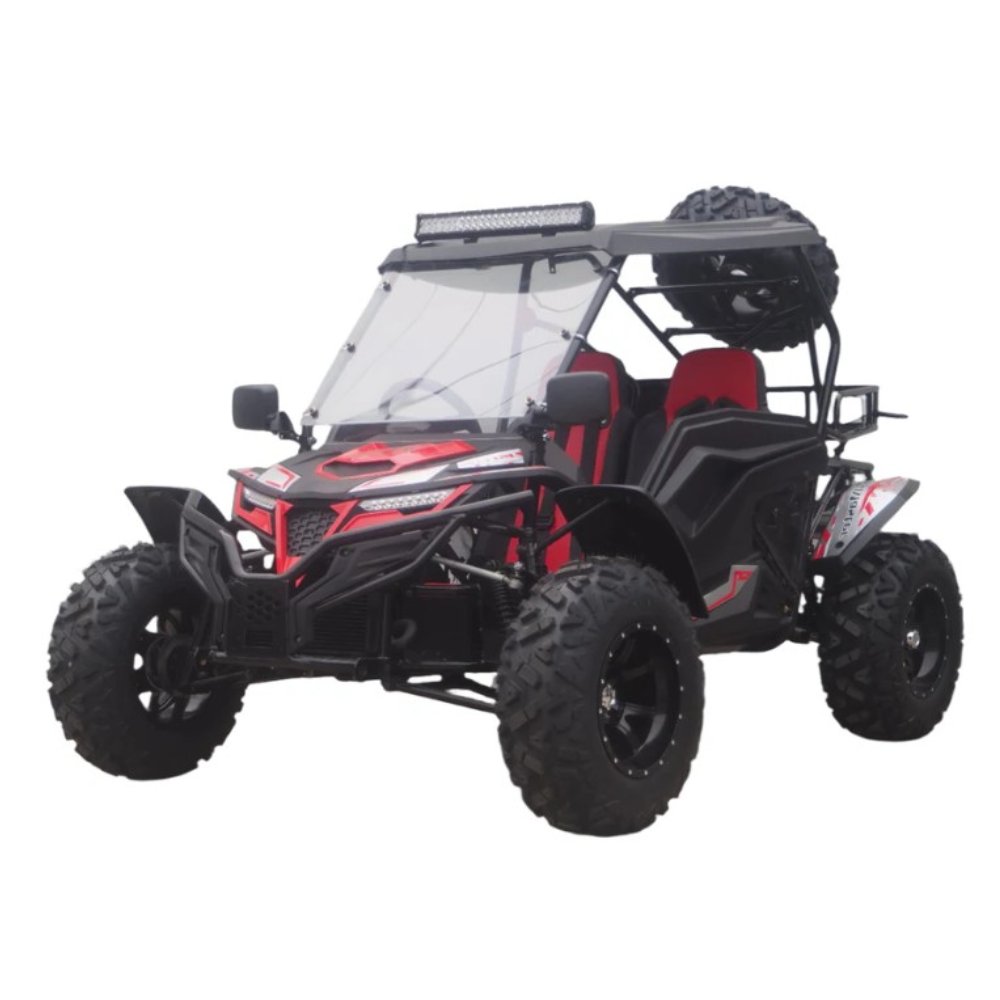

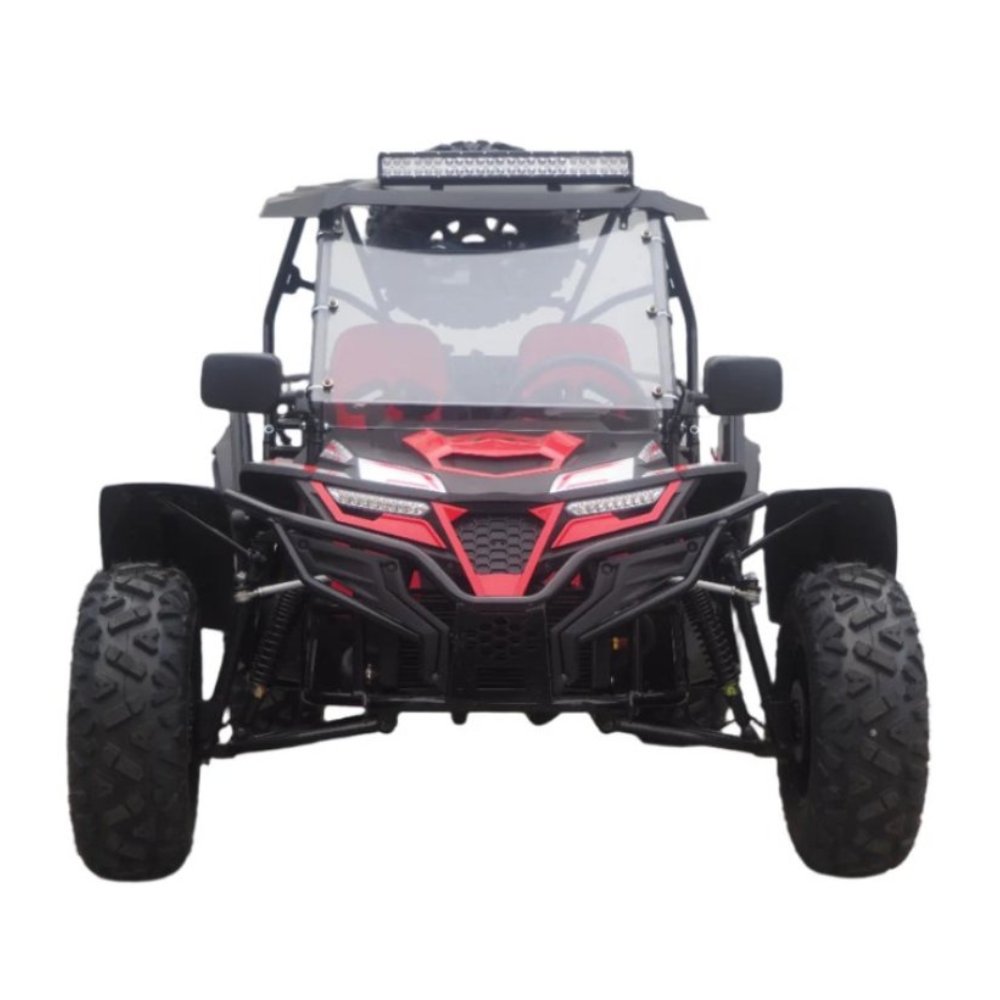

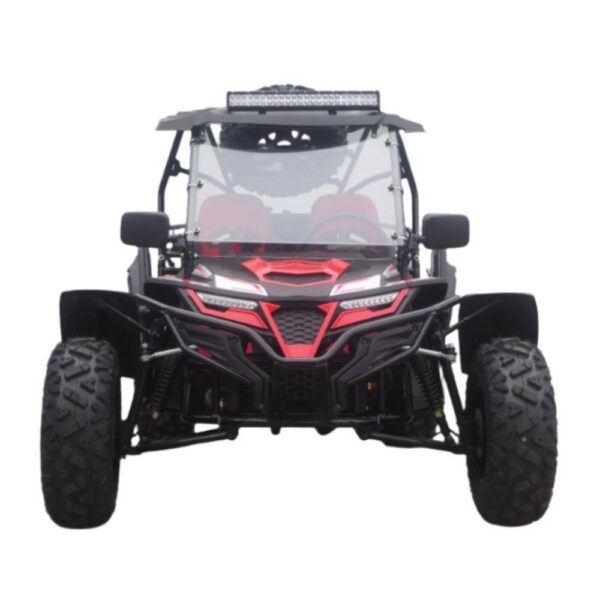

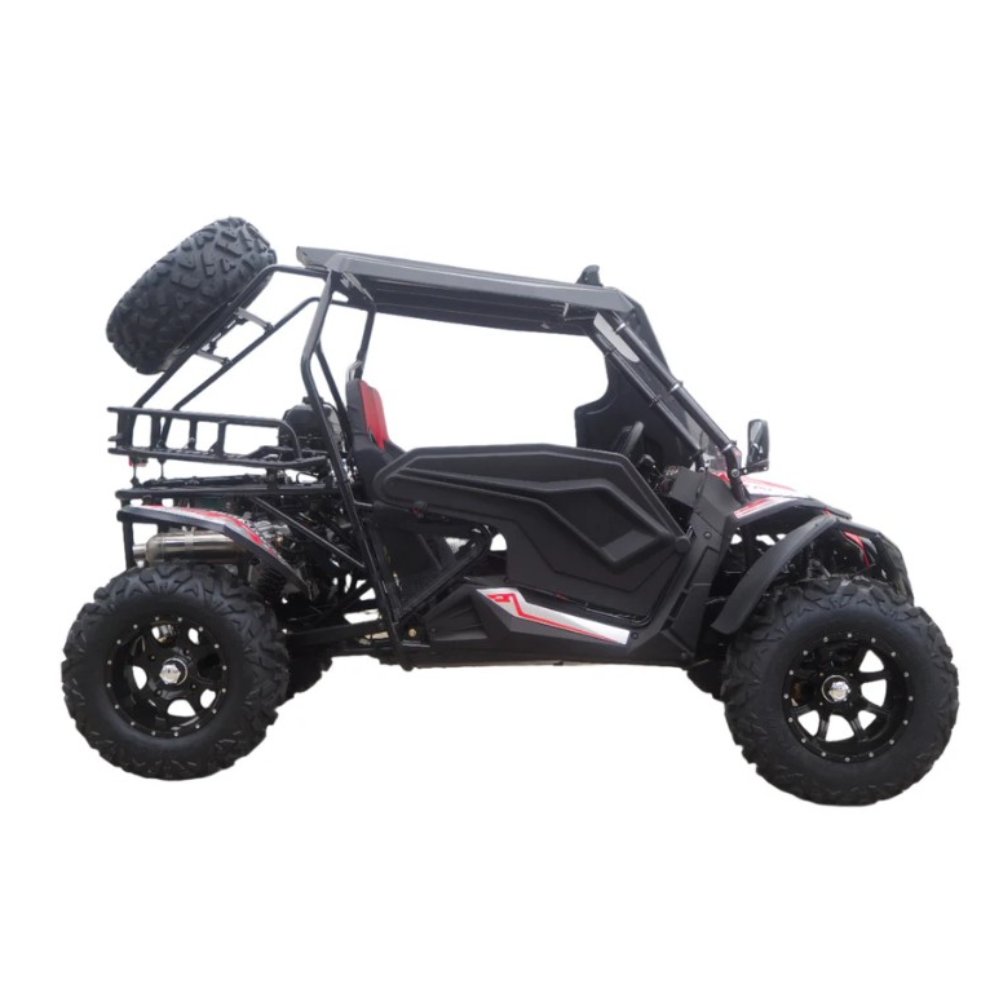

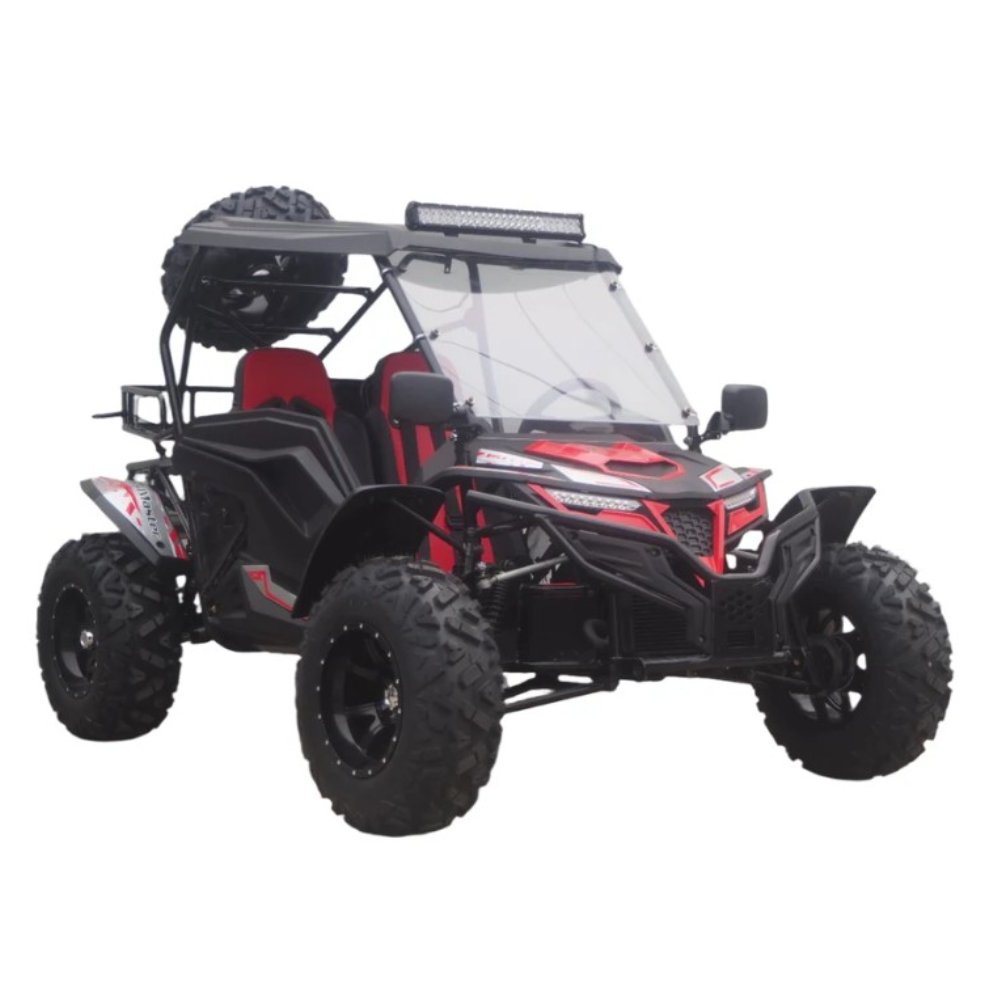

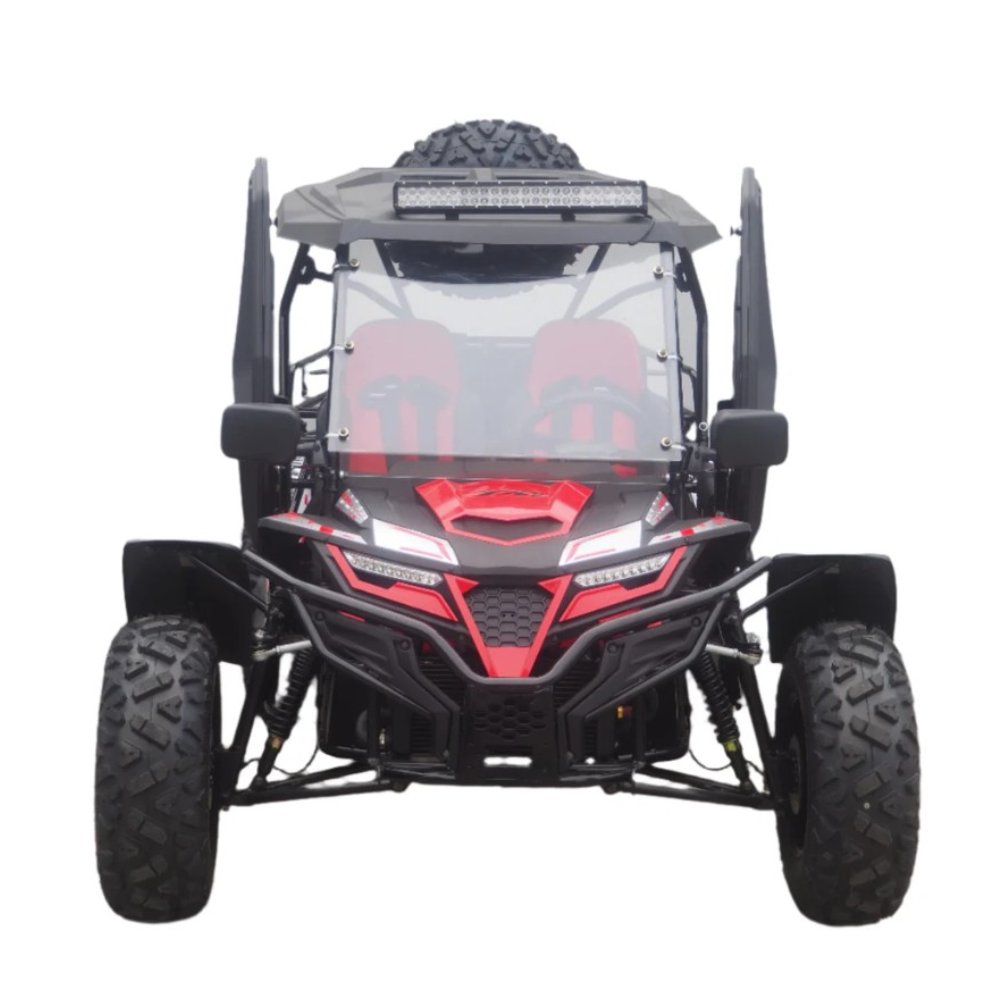

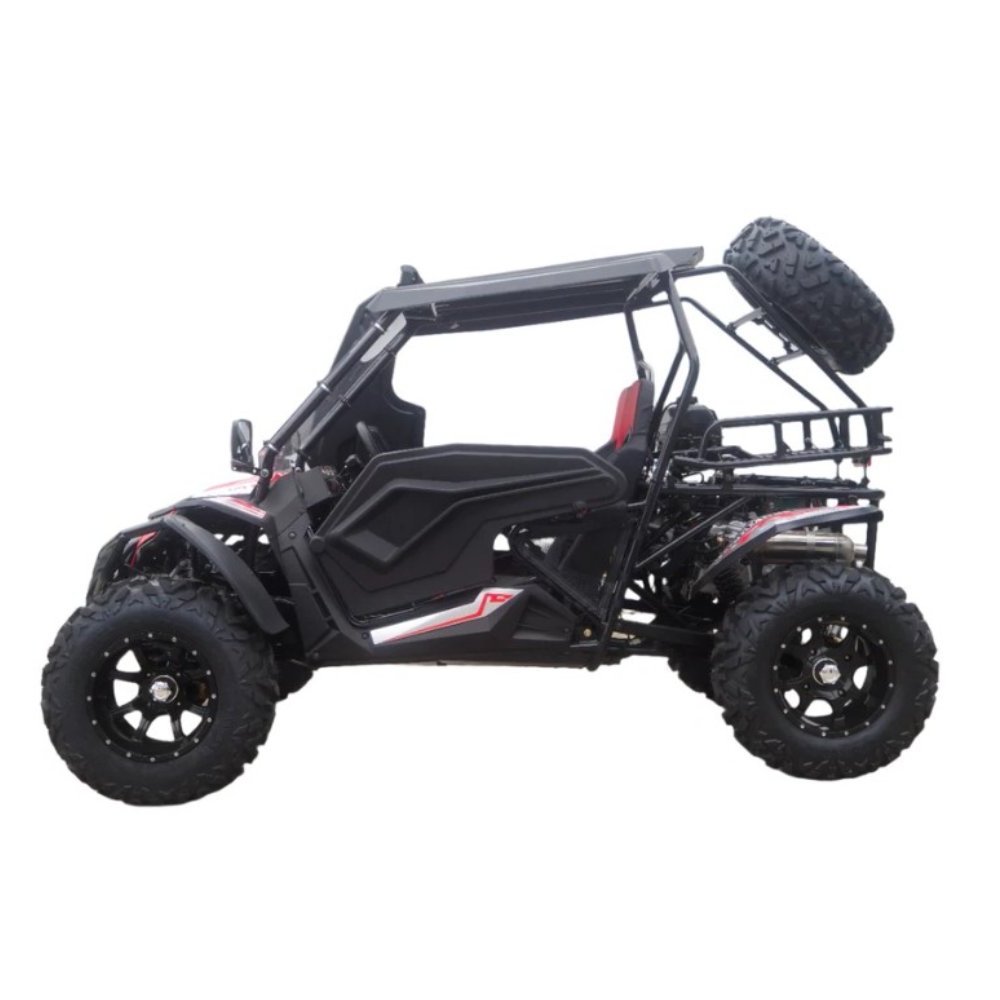

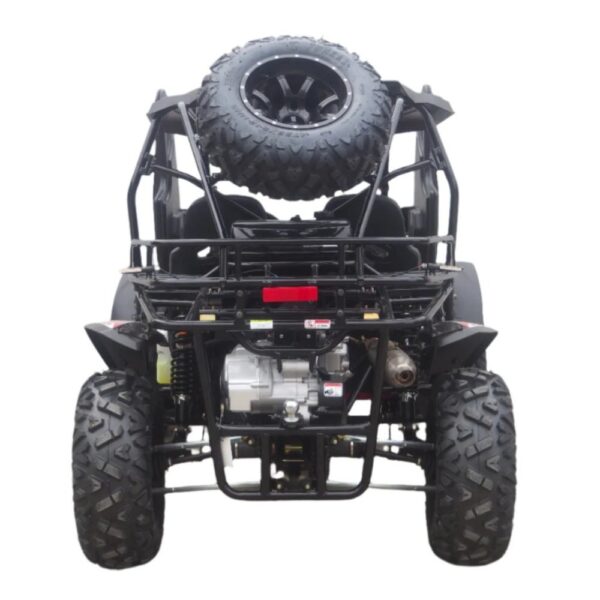

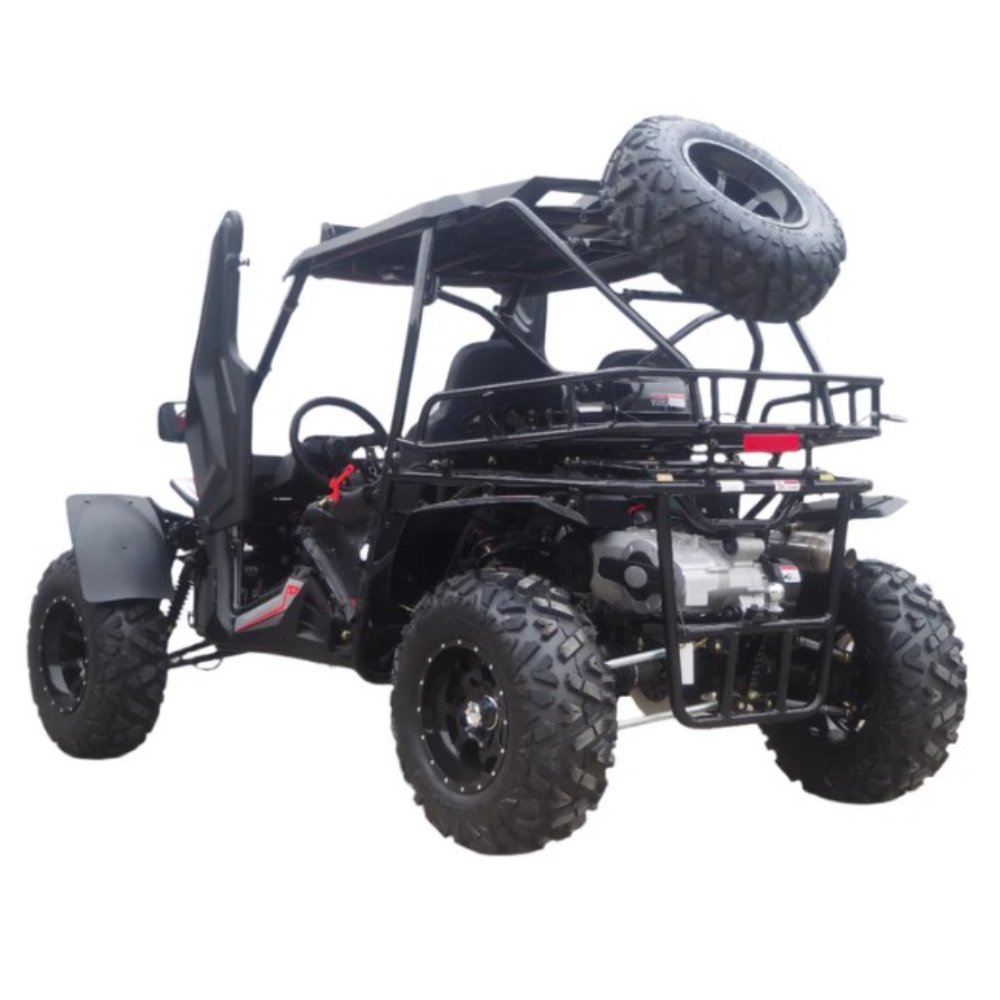

Trailmaster Cheetah 300 Pro GoKart

$6,199.00

SKU: TM-CHEETAH-300PRO Category: Tags: , ,

Description

Get ready for rugged adventure with the Trailmaster Cheetah 300 Pro GoKart, a fully-loaded, high-performance UTV built for action. Powered by an EPA-certified 275.6cc water-cooled 4-stroke engine, it delivers 18HP and 22N.m of torque for powerful off-road performance. The CVT automatic transmission with reverse, EFI system, and electric start ensure a smooth ride in any weather or terrain.

The Trailmaster Cheetah 300 Pro GoKart offers top-tier comfort and control with 4-wheel independent suspension, dual A-arm front, and rear disc brakes. This sporty buggy features aggressive 25″ alloy tires, adjustable driver seat, four-point safety harness, and a digital speedometer. Added style and safety come from LED headlights, a top light bar, front bumper, and rearview mirrors.

Built for serious fun, this go cart includes side doors, a spare tire, a hard top, and a bikini sunshade. With a 500-lb max load, 2.64-gallon fuel tank, and a durable steel frame, the Cheetah 300 Pro is your ultimate off-road companion. Adventure starts here — ride with power, style, and confidence.

  • CVT automatic transmission
  • EFI system
  • 4 wheel independent suspension
  • LED headlights
  • top light bar

FREE shipping in the lower 48 states!  We also ship internationally.

Specifications:

EPA certificated Engine type 4-stroke, single cylinder, water- cooled Displacement: 275.6cc Fuel system: EFI Max HP: 13KW@7500 RPM Max torque: 22N.m@5000 RPM Bore x stroke: 2.85x2.63 inches Max speed: 30 mph EFI Ignition module: RM1A1 Starting system: Electric Battery: 12V 10Ah Engine oil: SAE 10W-40 General Information Clutch: Automatic CTV with reverse Driveline / Driving wheel: Chain / Dual wheel drive Suspension F / R: DUAL A-ARM / Independent suspension Brakes, F / R: Both hydraulic brakes, Disc Tires, F / R: 25x8-12 / 25x10-12 Fuel capacity: 2.64 gal Weight, G.W. / N.W.: 880 / 780 lbs Max load: 500 lbs Dimension Information Wheelbase: 71 inches OA L x W x H: 92.1x55x63 inches Crate size: 91x48x34 inches Height to seat: 18.5 inches Min ground clearance: 5.9 inches Pedal to seat back distance: 36” to 42” Key features: 18HP powerful water-Cooled 300cc CVT fully automatic with reverse engine EFI operates under any weather and at any altitude 4 wheels independent suspension Gear ratio set up offers maximum low-end torque Sporty stylish design with exciting graphics Alloy wheels with large 25X8-12 front and 25X10-12 rear aggressive tires Top LED light bar Spare tire Side doors High quality windshield Hard top Digital Odometer/Speedometer Side rearview mirrors Front steel bumper LED headlight and turn signal Electric start with kill switch Adjustable steering wheel Four-point safety seatbelt Individual sports seats Bikini sunshade top Adjustable driver seat: pedal to seat back adjustable from 36” to 42” Rack and pinion steering wheel Front and rear hydraulic disc brake Parking brake 4-wheel stylish fenders Large gas tank

Additional information

Weight 780 lbs
Color

Blue, Green, Red, White

Brand

TrailMaster

Size

300cc

product_specs

EPA certificated
Engine type: 4-stroke, single cylinder, water- cooled
Displacement: 275.6cc
Fuel system: EFI
Max HP: 13KW@7500 RPM
Max torque: 22N.m@5000 RPM
Bore x stroke: 2.85×2.63 inches
Max speed: 30 mph
EFI Ignition module: RM1A1
Starting system: Electric
Battery: 12V 10Ah
Engine oil: SAE 10W-40
General Information
Clutch: Automatic CTV with reverse
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension F / R: DUAL A-ARM / Independent suspension
Brakes, F / R: Both hydraulic brakes, Disc
Tires, F / R: 25×8-12 / 25×10-12
Fuel capacity: 2.64 gal
Weight, G.W. / N.W.: 880 / 780 lbs
Max load: 500 lbs
Dimension Information
Wheelbase: 71 inches
OA L x W x H: 92.1x55x63 inches
Crate size: 91x48x34 inches
Height to seat: 18.5 inches
Min ground clearance: 5.9 inches
Pedal to seat back distance: 36” to 42”

Key features:
18HP powerful water-Cooled 300cc CVT fully automatic with reverse engine
EFI operates under any weather and at any altitude
4 wheels independent suspension
Gear ratio set up offers maximum low-end torque
Sporty stylish design with exciting graphics
Alloy wheels with large 25X8-12 front and 25X10-12 rear aggressive tires
Top LED light bar
Spare tire
Side doors
High quality windshield
Hard top
Digital Odometer/Speedometer
Side rearview mirrors
Front steel bumper
LED headlight and turn signal
Electric start with kill switch
Adjustable steering wheel
Four-point safety seatbelt
Individual sports seats
Bikini sunshade top
Adjustable driver seat: pedal to seat back adjustable from 36” to 42”
Rack and pinion steering wheel
Front and rear hydraulic disc brake
Parking brake
4-wheel stylish fenders
Large gas tank
