TrailMaster Blazer i200R Youth Electric GoKart

$2,949.00

SKU: TM-BLAZER-I200R Categories: , Tags: , Brand:

Description

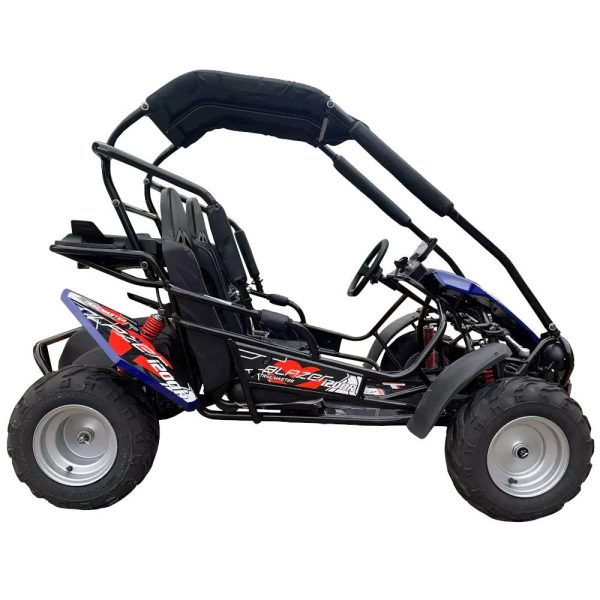

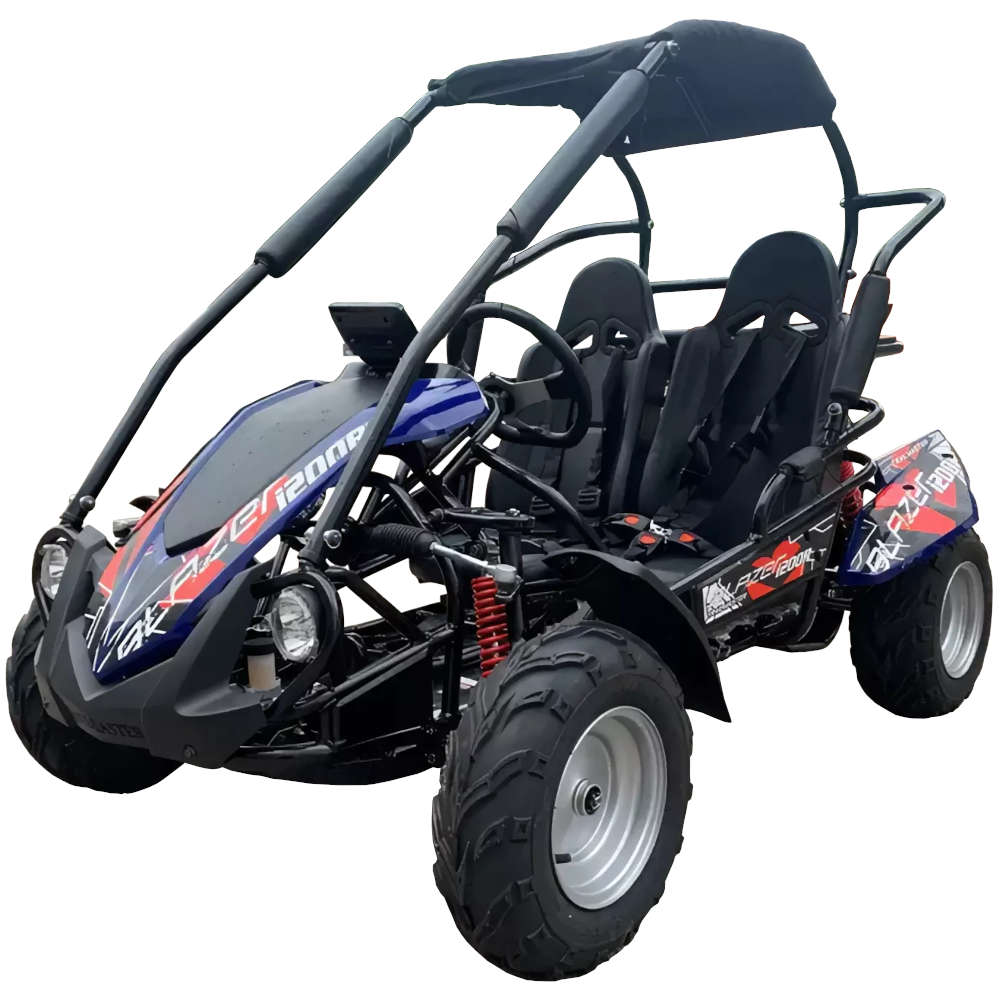

TrailMaster’s Blazer i200R is the US’s first youth electric mid-size gokart powered entirely by a lithium battery! The i200R is built on the same rugged off-road frame as the gas-powered Blazer 200R. This buggy has the same high-performance, dual A-arm suspension, coil-over shocks and hydraulic disc brake. An electric motor with a rated power of 1800 watts pushes the i200R to a top speed of 27 MPH on its S” gear setting. Boasting a massive 48 volt, 29 amp hour lithium battery, the Blazer can handle a full day of driving with a range of 36 miles on a full charge.

Equipped with an automatic transmission featuring a convenient reverse gear and a hand shift system, the Blazer i200R electric gokart ensures effortless maneuverability and control. With two separate speeds capping out at 15 and 27 MPH, respectively, you can match the power of your ride to the terrain! Climbing hills is a breeze with the Blazer i200R, boasting a remarkable climbing ability of over 20 degrees.

This gokart’s robust construction and max load capacity of 440 lbs ensure durability and accommodate riders and cargo of any size. Take advantage of the adjustable driver seat to tune the fit perfectly to your height! Other premium features include a canopy top, 5-point safety harnesses, a digital LED monitor and a padded safety roll cage. Comes in a choice of color with cool trail racing graphics!

Specifications:

Model TrailMaster Blazer i200R
Rated Power 1.8KW
Output Power 1.4KW
Transmission Automatic with Reverse
Shifter Hand Shift
Gearing R-N-D-S
Service Voltage 60V
Rated Speed 4350RPM
Rated Current 33A
Rated Torque 4Nm
Max Torque 87Nm/450A
Current limit 75A
Max Speed 27 MPH approx.
Max Range 36 miles approx.
Climbing Ability > 20 degrees
Battery Lithium
Battery Weight 14 lbs.
Nominal Voltage 48V
Rated Capacity 29Ah
Charging Temperature Range 32 to 115 degrees F
Storage Temperature Range 14 to 115 degrees F
Charging Time 9 hours est.
Brakes (Front/Rear) NA / Hydraulic Disc
Tires (Front/Rear) 16x6-8 / 16x7-8
Suspension (Front/Rear) Double A-Arm Independent Shock / Double Oil Damped Shock
Features Canopy top, 5-point safety harness, Digital LED monitor, Horn, Padded roll cage, Adjustable driver seat
Wheelbase 48.4 inches
Seat Height 10.2 inches
Min ground clearance 2.8 inches
Max load 440 lbs.
Net Weight 352 lbs.
Gross Weight 435 lbs.
Dimensions (LxWxH) 67x44x51 inches
Shipping Dimensions (LxWxH) 70x44x26 inches

Additional information

Weight 435 lbs
Dimensions 70 × 44 × 26 in
Color

Blue, Red
