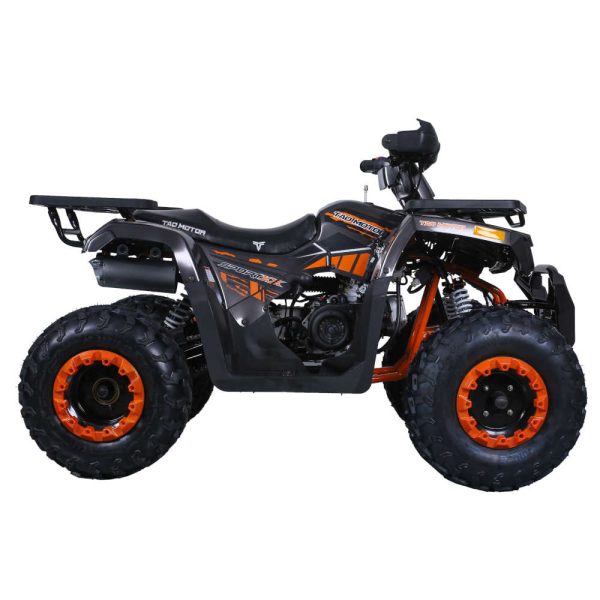

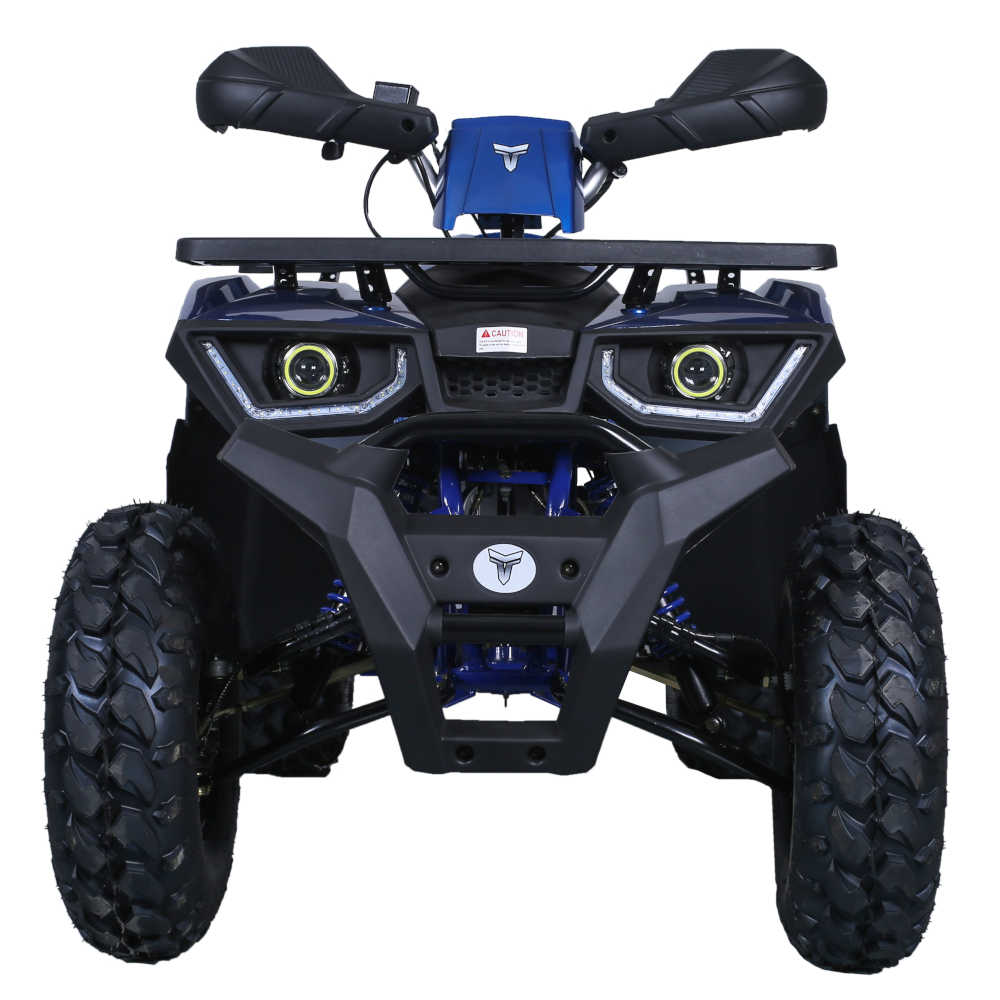

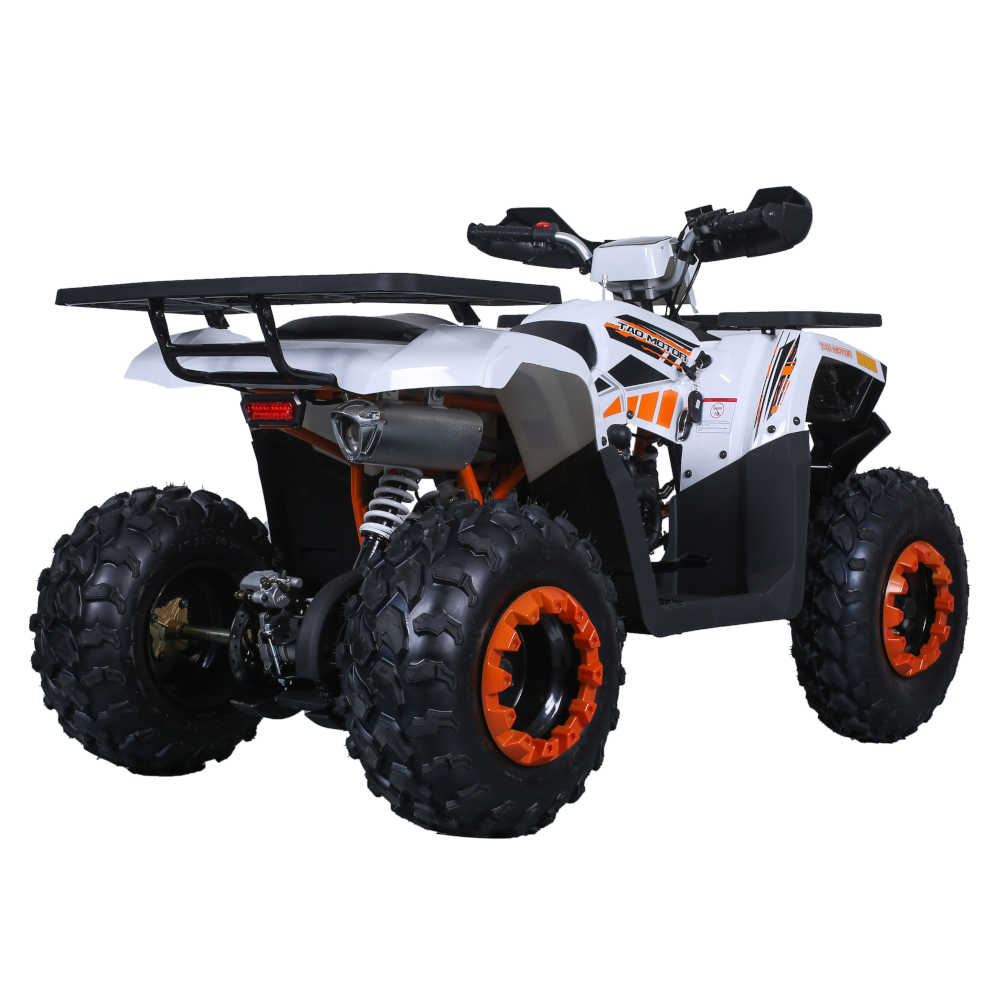

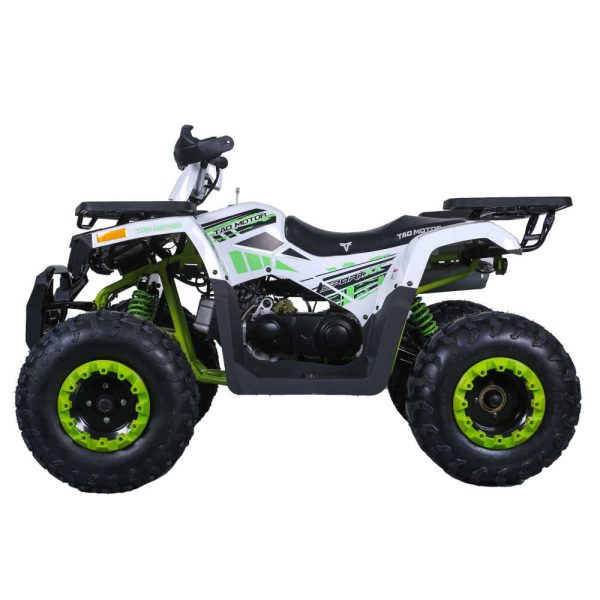

TaoTao G200 Utility ATV

$2,411.18

SKU: TT-RAPTOR200 Category: Tags: , Brand:

Description

The TaoTao G200 Youth ATV has a fresh new redesign with a larger welded-steel frame and 200cc class engine! Featuring a fully automatic transmission with reverse, now you can have all the power you need without having to trouble with switching gears. Get on, fire it up with the reliable electric starter, and you’re ready to go! With the added horsepower and larger 32 inch seat height, this ATV is built for older teenagers and adult drivers looking for a powerful addition to the garage! With front and rear hydraulic disc brakes and coil-over-shock suspension with over 14 inches of travel, the G200 four-wheeler guarantees smooth braking and tight turns that can keep up with the toughest terrain! Includes front and rear utility racks and comes in your choice of awesome two-tone color combos! CARB Approved.

FREE shipping in the lower 48 states!  We also ship internationally.

Specifications:

Model Tao G200
Engine Air-colled, 4-stroke, Single-cylinder
Displacement 169cc
Max torque 10.2 N.m @ 5000-5500 rpm
Transmission Automatic with Reverse
Shift Gear Hand Shift
Final Drive Chain
Starting system Electric
Ignition CDI
Battery 12V/9Ah
Fuel capacity 1.3 gal.
Brakes (Front/Rear) Hydraulic Disc / Hydraulic Disc
Tires (Front/Rear) 23x7-10 / 22x10-10
Suspension (Front/Rear) 14.8/ 14.6 inches
Seat Height 32.3 inches
Min ground clearance 5.12 inches
Max load 330 lbs.
Wheelbase 48 inches
Net Weight 386 lbs.
Gross Weight 488 lbs.
Dimensions (LxWxH) 73x42x44 inches
Shipping Dimensions (LxWxH) 65x44x31 inches

Additional information

Weight 488 lbs
Dimensions 65 × 44 × 31 in
Color

Blue, Green/White, Grey, Orange/White

Checking for Spark

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Checking the CDI

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Connecting The Battery.

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Changing The Oil

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Battery Prep

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Starting The ATV

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Adjusting the Idle

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Adjusting the Speed Limiter

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Checking Fuel Flow

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Checking Coil Wires

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Jumping the Solenoid

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Tightening The Chain

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Checking the Tether

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Setting Toe and Steering

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Inflating the Tires

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Locating the VIN

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

What is Lift Gate?

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Shipping Damage

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

www.familygokarts.com logo

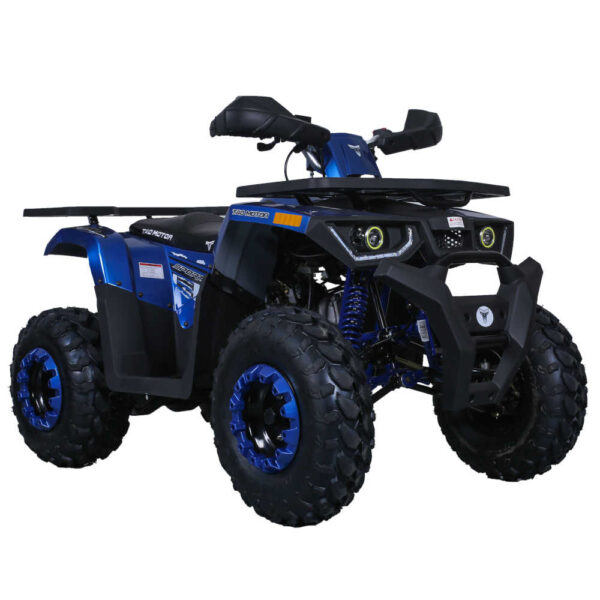

TaoTao G200 Utility ATV - Blue
