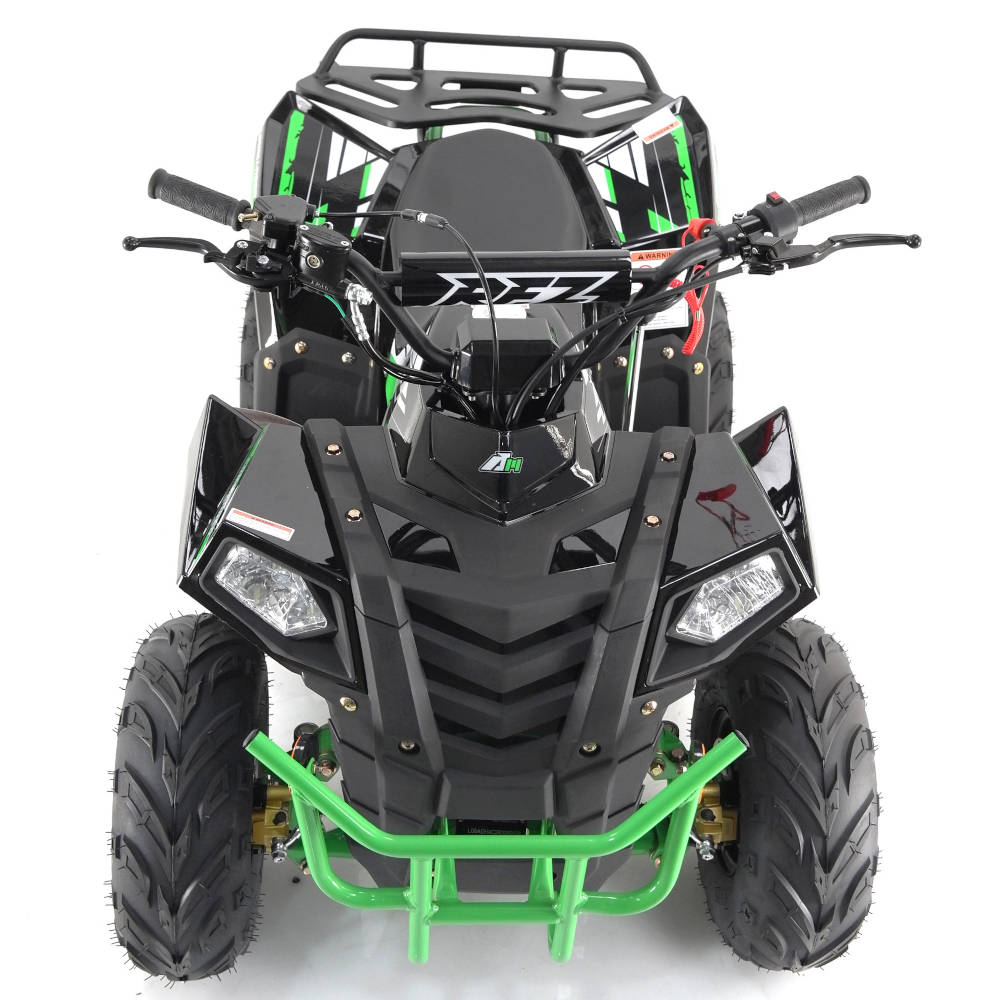

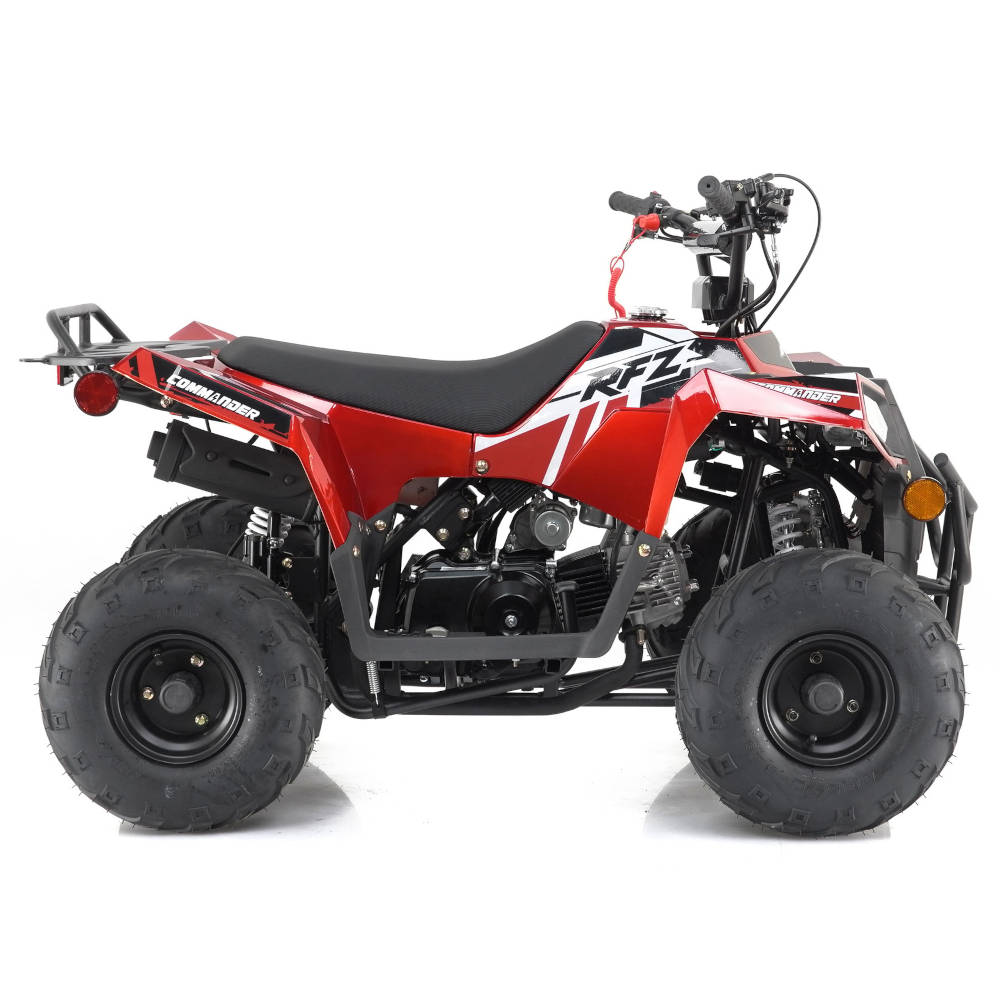

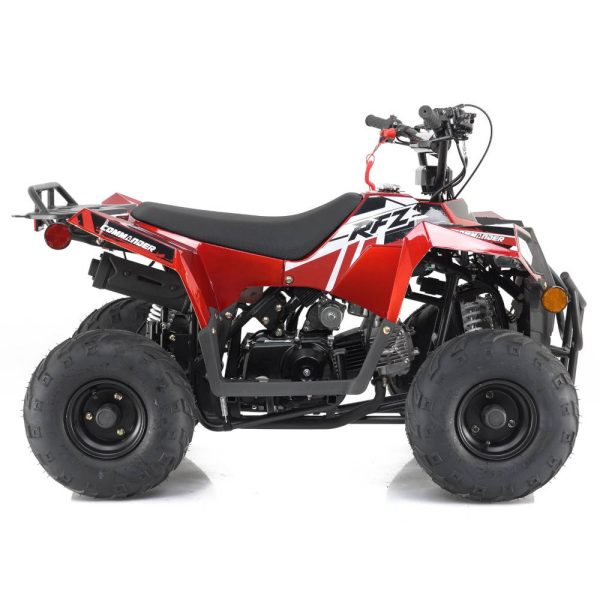

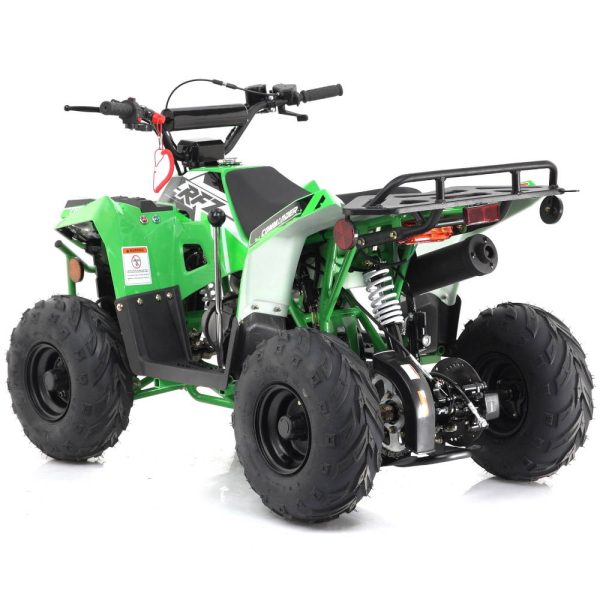

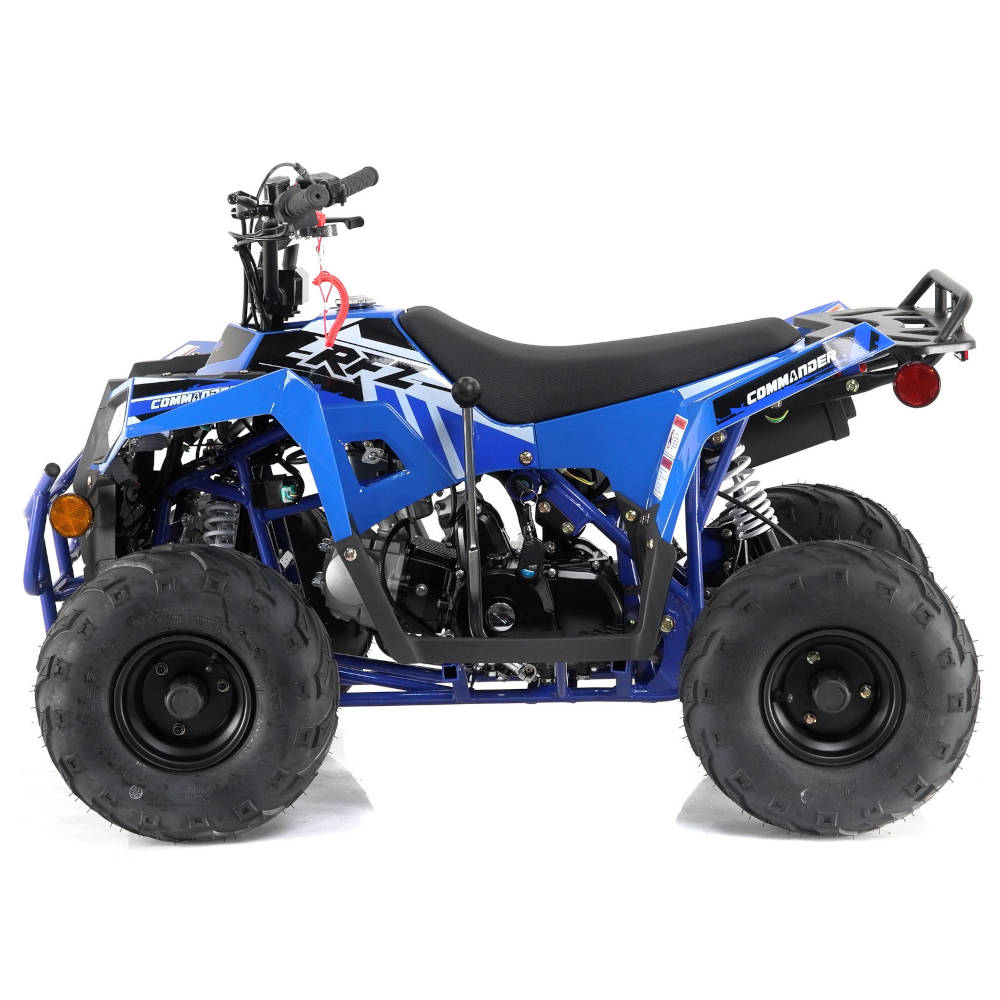

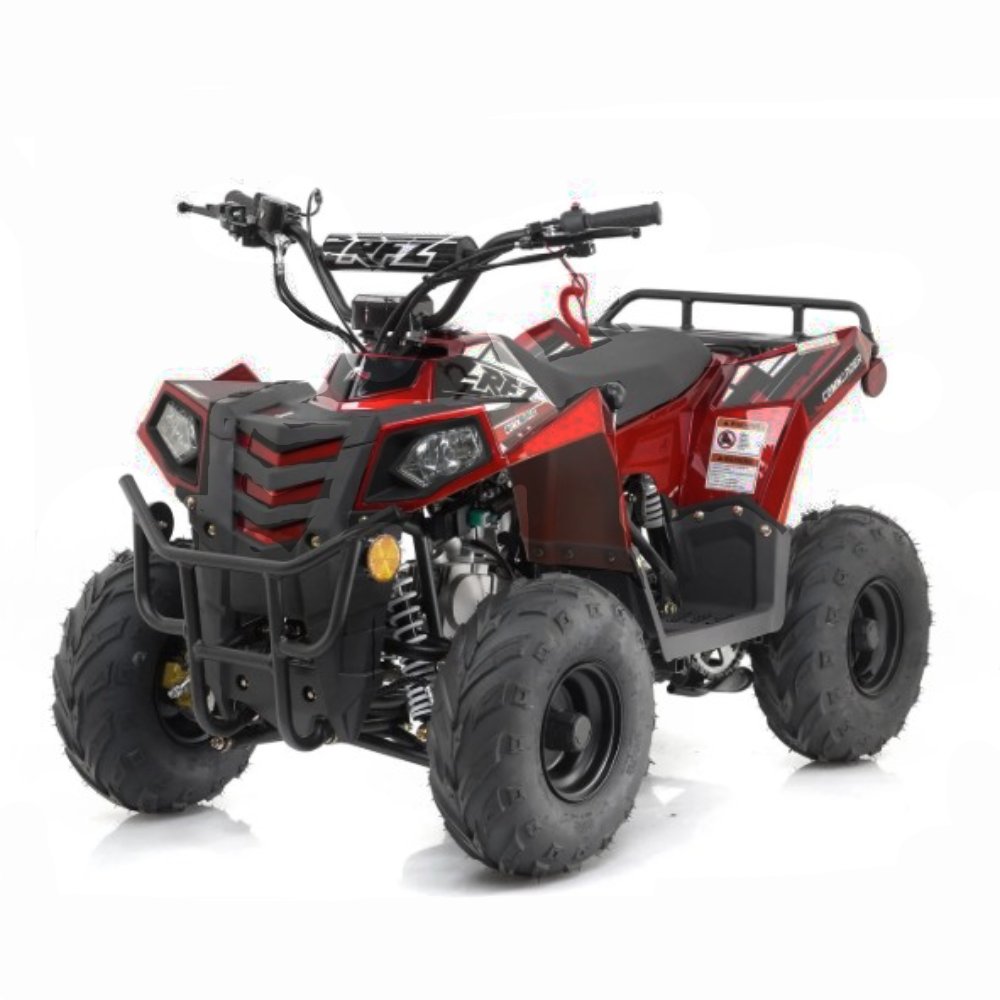

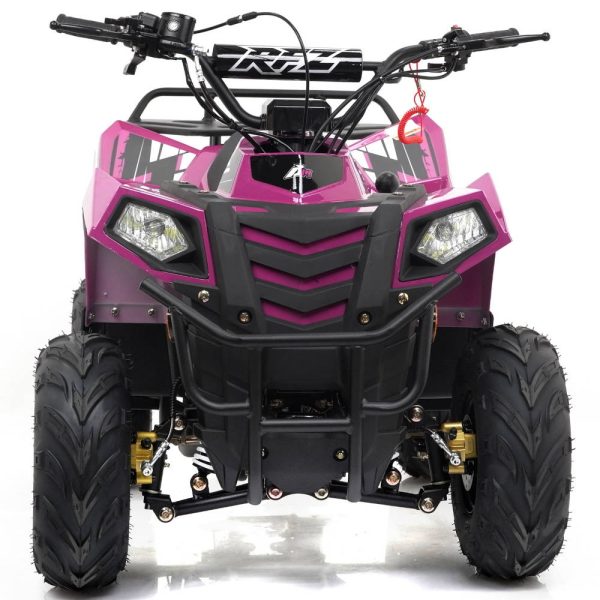

Apollo Mini Commander 110 Kids ATV

$1,099.95

SKU: VT-APOLLO-MINI-COMMANDER-110 Category: Tags: , , , , Brand:

Description

Introducing the Apollo Mini Commander 110 kids ATV, the ultimate thrill-seeker companion designed for young adventurers! With a robust 4-stroke, air-cooled engine boasting a displacement of 106.7cc, this ATV brings power and excitement to the forefront of every ride. The semi-automatic transmission, coupled with foot shifter, lets young riders build up experience switching between gears without the hassle of timing a clutch with every shift.

This quad’s agile handling, equipped with hydraulic disc brakes on both the front and rear, lets riders take tight turns and make quick stops safely as their skills improve. The Mini Commander kids ATV can carry a maximum load of 155 pounds with a light 165 pound frame, making it manageable for kids with the capacity to carry extra toys and gear. Comes in a selection of eye-catching colors!

Specifications:

Model Apollo Mini Commander 110
Engine 4-stroke, single-cylinder, air-cooled
Displacement 106.7cc
Transmission Semi automatic
Shift Gear Foot Shift
Final Drive Chain
Max Power 5.0kW / 7500rpm
Max Torque 7.0N.m / 5500rpm
Max Speed 15 MPH
Bore x Stroke 52.4 x 49.5 mm
Starting System Electric
Ignition CDI
Fuel Capacity TBD
Brakes (Front/Rear) Hydraulic Disc / Hydraulic Disc
Tires (Front/Rear) 145/70-6 / 145/70-6
Suspension (Front/Rear) Independent Dual A-Arm / Mono Swingarm
Wheelbase 31.7 inches
Seat Height 22.8 inches
Min Ground Clearance 3.5 inches
Max Load 155 lbs.
Net Weight 165 lbs.
Gross Weight 195 lbs.
Dimensions (LxWxH) 47x30x33 inches
Shipping Dimensions (LxWxH) 45x27.5x23 inches

Additional information

Weight 194 lbs
Dimensions 45 × 27.5 × 23 in
Color

Black, Blue, Burgundy, Green, Orange, Pink, Red, White

Engine Type

4-Stroke

Transmission

Semi-Auto

Checking for Spark

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Checking the CDI

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Connecting The Battery.

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Changing The Oil

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Battery Prep

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Starting The ATV

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Adjusting the Idle

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Adjusting the Speed Limiter

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Checking Fuel Flow

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Checking Coil Wires

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Jumping the Solenoid

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Tightening The Chain

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Checking the Tether

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Setting Toe and Steering

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Inflating the Tires

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Locating the VIN

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

What is Lift Gate?

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.

Shipping Damage

Note: The products shown in these videos may not be identical to the product sold on this page. However, they contain general information that may prove helpful. Viewing them is highly recommended.
