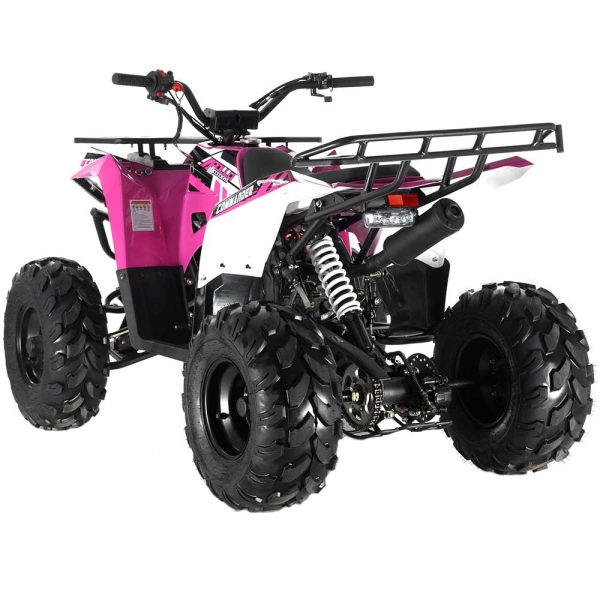

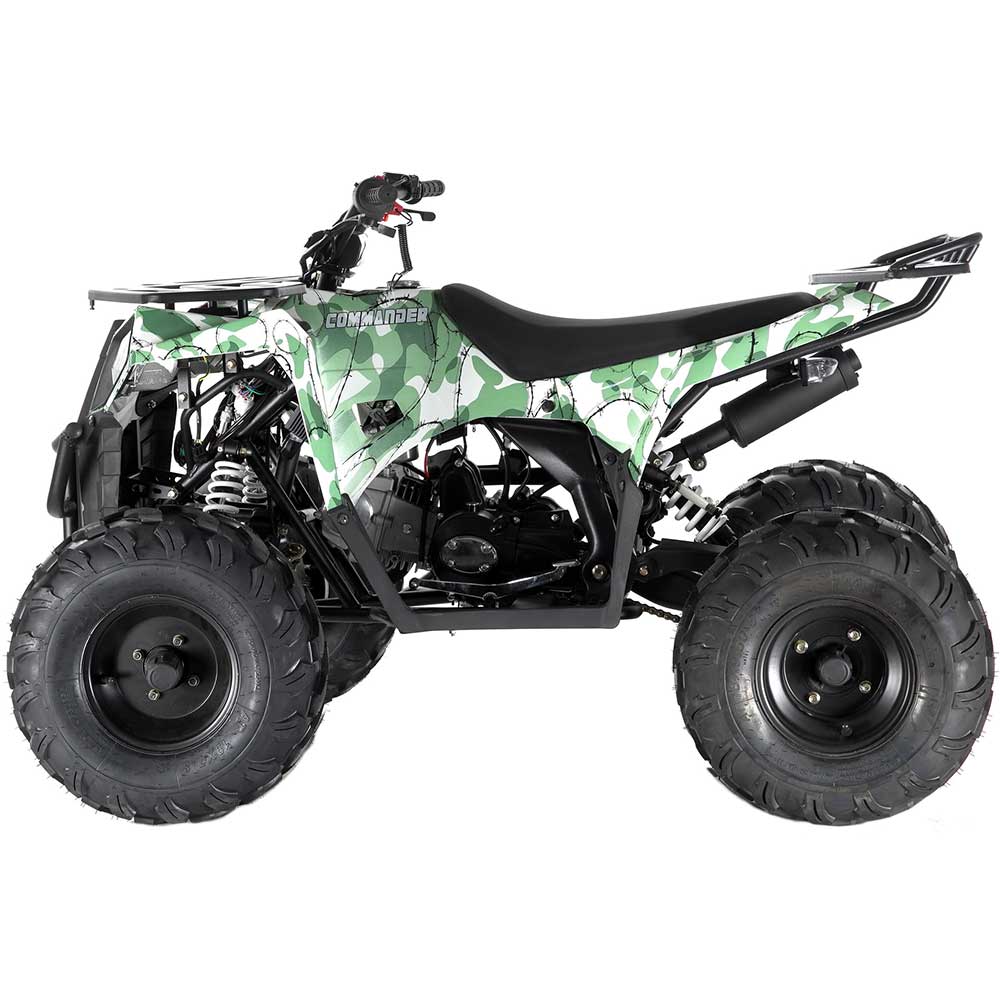

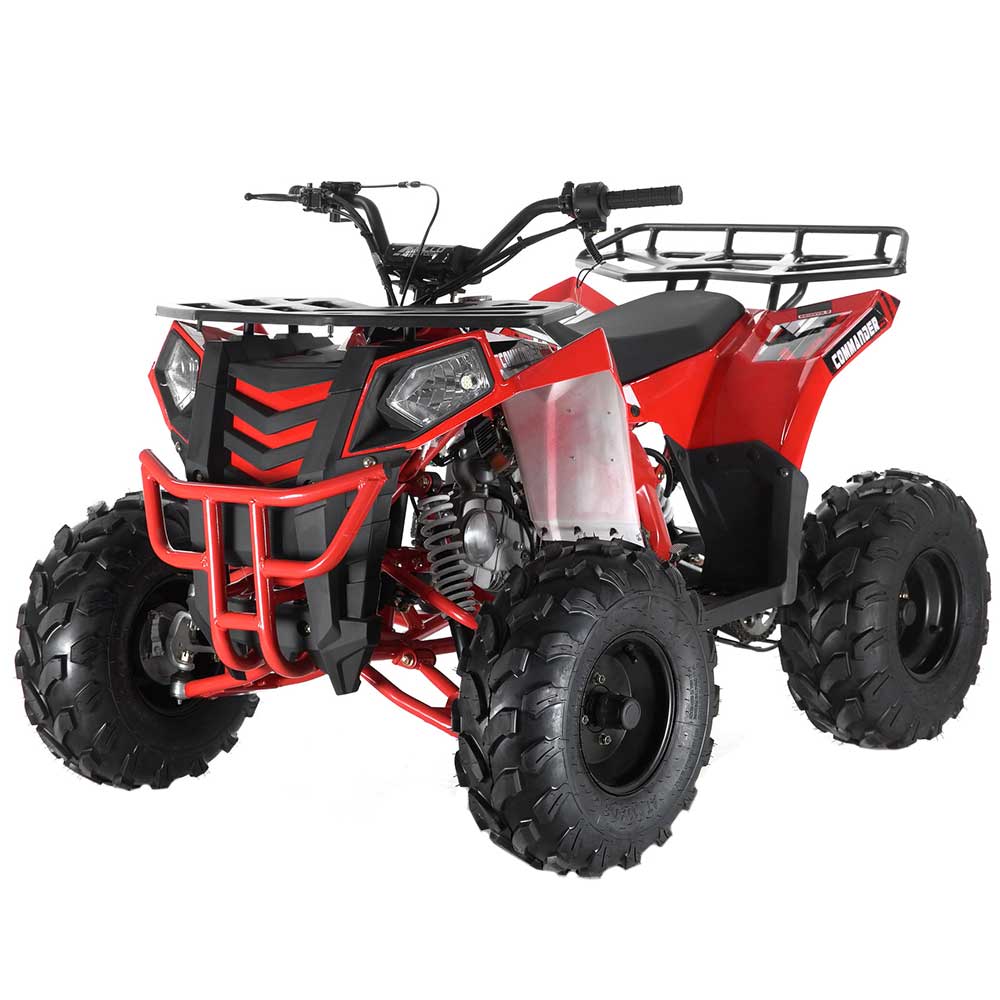

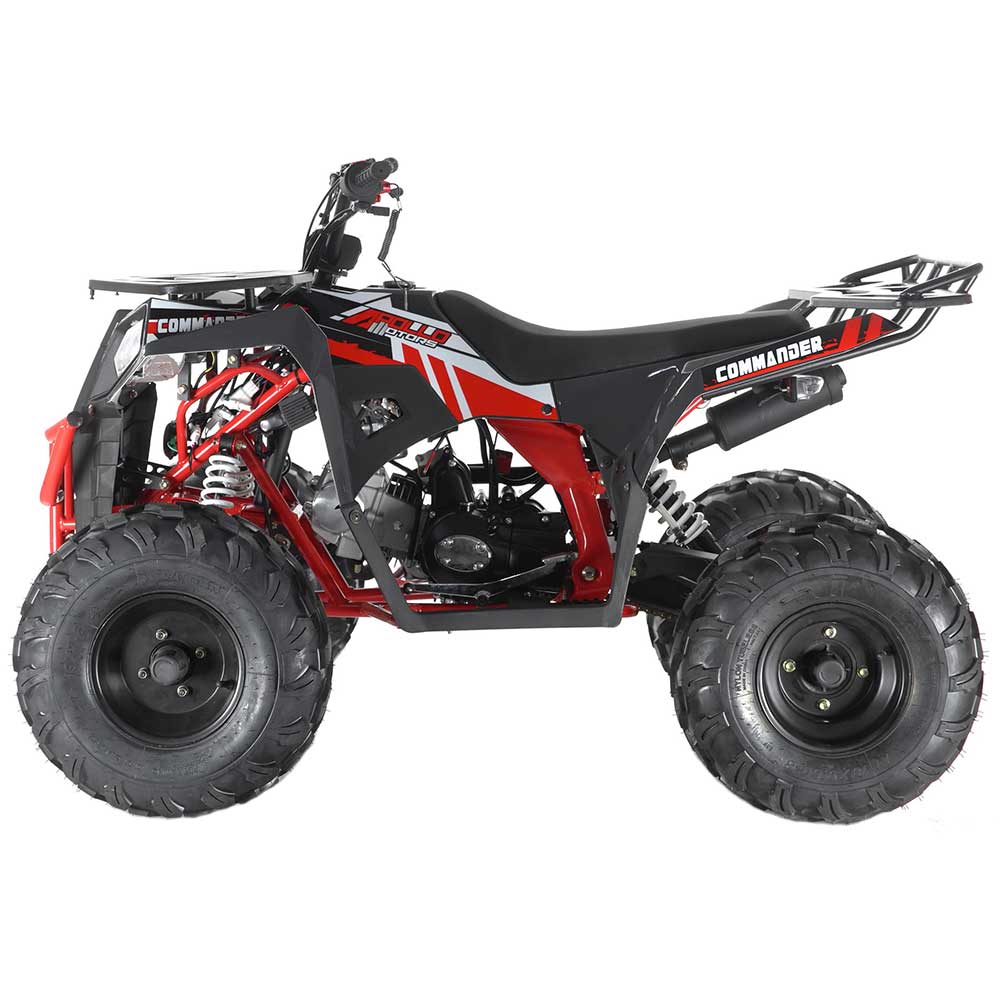

Apollo Commander 125 Mid-Size Youth ATV
$1,324.99
Description
The Apollo Commander 125cc Youth ATV features aggressive styling, a heavy-duty color-matched front bumper, front and rear utility racks and awesome graphics! The 125cc, 4-stroke engine powers an automatic transmission with reverse and a chain drive. The Commander is built on a tough, steel frame with front and rear independent suspension and front and rear disc brakes. A Remote Control On/Off keeps parents in control. Big 19 and 18 inch tires provide excellent off-road traction and offer good ground clearance. Electric start. Several colors.
Specifications:
Model | Apollo Commander 125 VRX120-6-A1 |
---|---|
Intended User Age | Y12 (12 - up) |
Engine Type | 4-stroke, single cylinder, OHC |
Displacement | 125cc |
Cooling | Air cooled |
Ignition | CDI |
Starting system | Electric |
Battery | 12V/5Ah |
Engine oil | SAE15W/40SF |
Transmission | Auto with Reverse |
Driveline | Chain |
Driving wheel | Rear wheel drive |
Brakes (front/rear) | Disc / Disc |
Brake operation | Hand |
Tires (front/rear) | 19x7-8 / 18x9.5-8 |
Features | Remote On/Off, Color-matched Front Bumper, Utility Racks |
Fuel capacity | 2.3 L |
Max speed | 30 mph |
Max Load | 223 lbs. |
Wheelbase | 44.1 inches |
Height to seat | 37.4 inches |
Min ground clearance | 3.2 inches |
Dimensions (LxWxH) | 66.9x45.3x43.3 inches |
Shipping Dimensions (LxWxH) | 55.5x34x30.3 inches |
Additional information
Weight | 319.7 lbs |
---|---|
Dimensions | 55.5 × 34 × 30.3 in |
Color | Black, Blue, Camo, Green, Pink, Red, White |
Recommended Age | Kids 3-11, Youth 8-15 |
