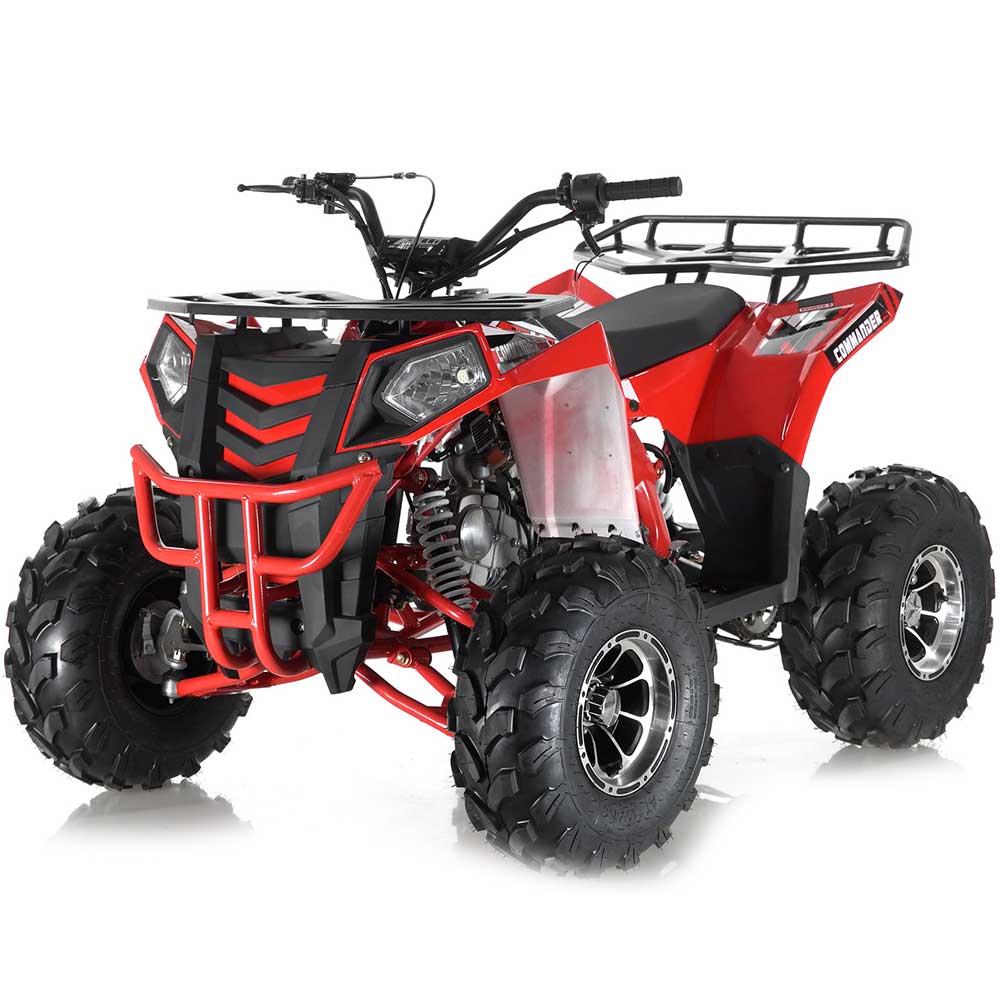

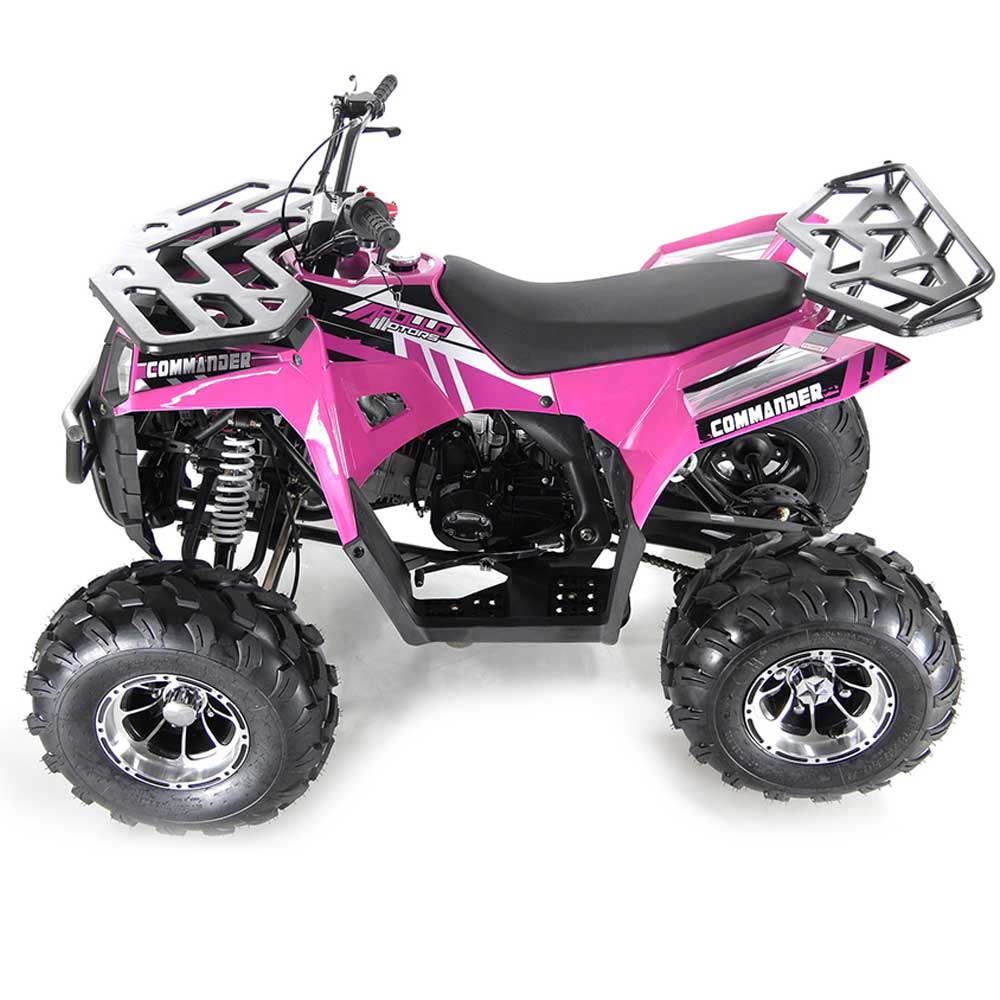

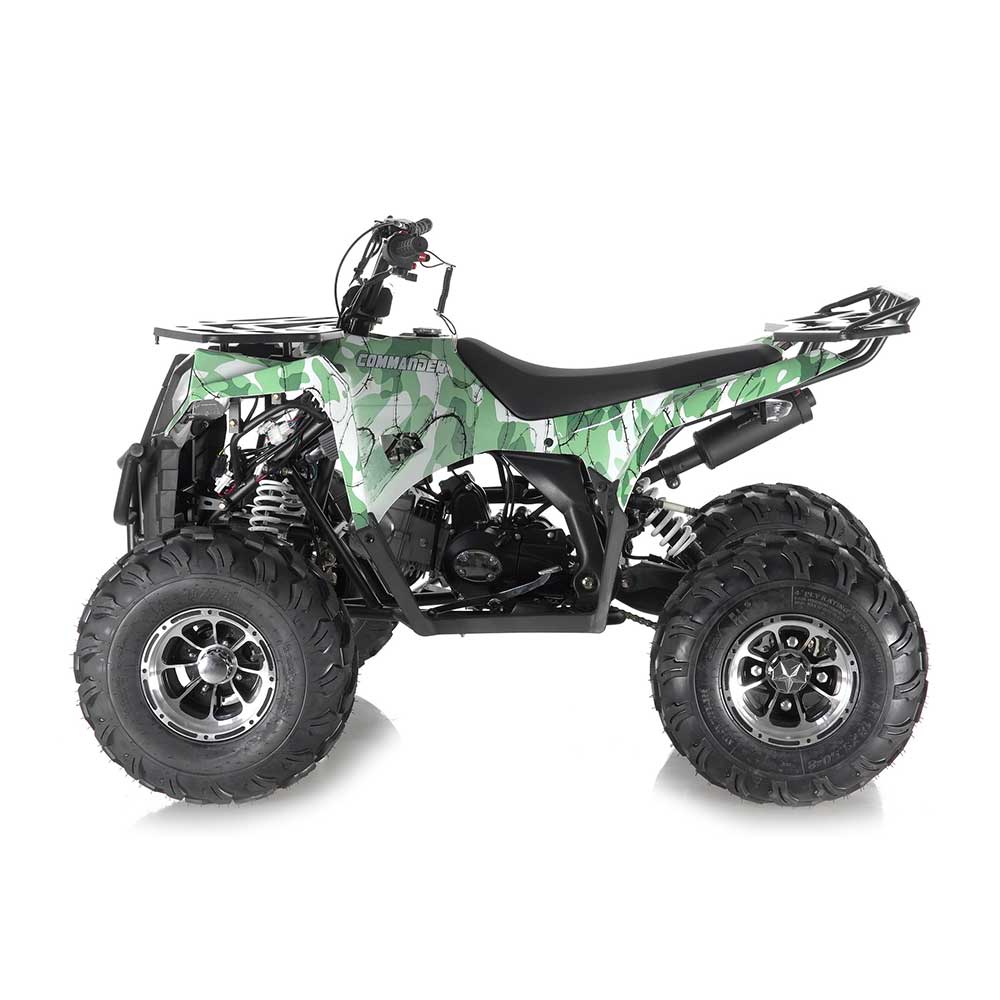

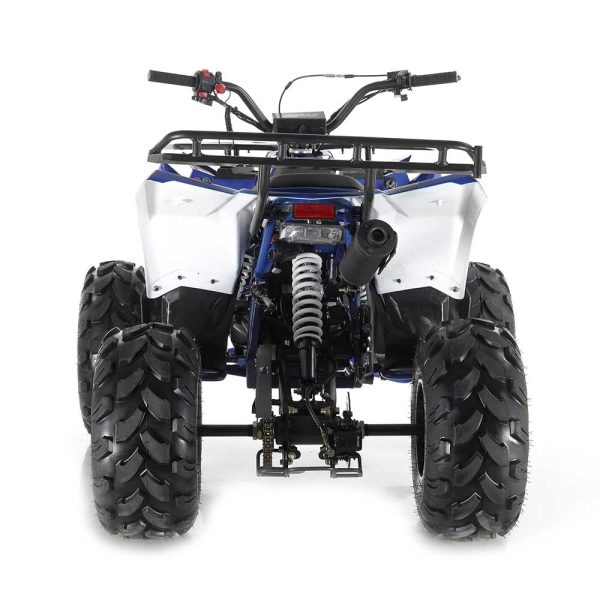

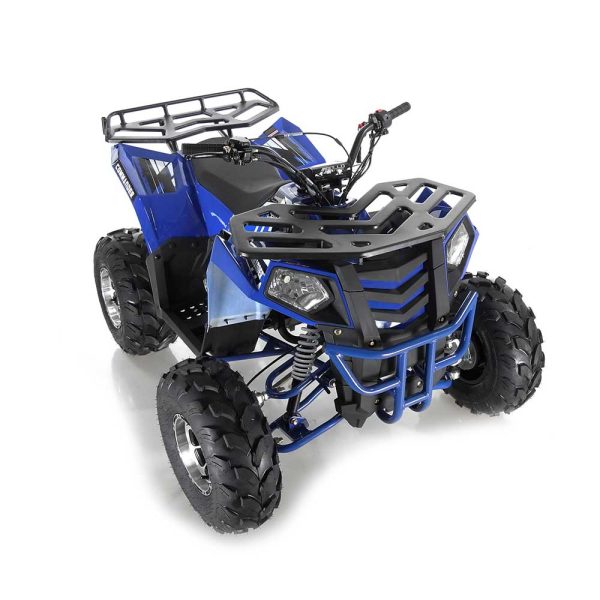

Apollo’s new Commander 125 DLX Youth ATV features everything found on the standard Commander plus chrome wheels! The Commander DLXis powered by a reliable 125cc four-stroke engine with overhead cam and an automatic transmission with reverse. With a tall 37 inch seat height, over3 inches of ground clearance and big 19 inch front and 18 inch rear tires, the Commander DLX is a top performer off-road. Comes standard with front drum andrear disc brakes, front and rear utility racks, steel front bumper, coil-over shocks and electric start. Several colors, plus color-matched frames!
Specifications:
Model
Apollo Commander 125 DLX VRX120-6-A1
Intended User Age
G16 (16 - up)
Engine
4-stroke, single cylinder, OHC
Displacement
125cc
Cooling
Air cooled
Max speed
30 mph
Ignition
CDI
Starting system
Electric
Battery
12V/5Ah
Engine oil
SAE15W/40SF
Gear oil
*
Transmission
Auto with reverse
Driveline
Chain
Driving wheel
Rear wheel drive
Brakes (front/rear)
Drum / Disc
Brake operation (front/rear)
Hand / Foot
Tires (front/rear)
19x7-8 / 18x9.5-8
Fuel capacity
2.3 L
Net Weight
264.5 lbs.
Gross Weight
319.7 lbs.
Max Load
223 lbs.
Wheelbase
44.1 inches
Height to seat
37.4 inches
Min ground clearance
3.2 inches
Dimensions (LxWxH)
66.9x45.3x43.3 inches
Shipping Dimensions (LxWxH)
55.5x34x30.3 inches
Additional information
Weight
319.7 lbs
Dimensions
55.5 × 34 × 30.3 in
Color
Black, Blue, Green, Green Camo, Grey, Pink, Red, White
